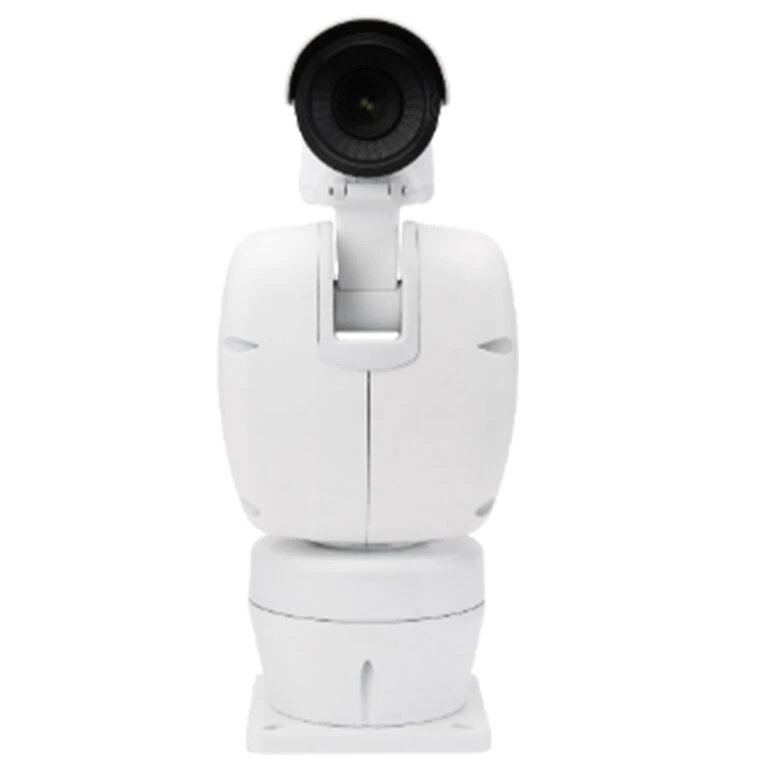

WISENET TNU-4041T

TNU-4041T

VGA NW Thermal Positioning Camera

• Max. 640 x 480 resolution support

• Built-in 19mm fixed lens

• H.265, H.264, MJPEG codec, WiseStreamII support

• Max. 30fps@all resolutions (H.265, H.264)

• Tampering, Loitering, Directional Detection, Virtual Line,

Enter/Exit, Appear/Disappear, Audio Detection,

Motion Detection, Handover, Sound Classification,

Shock detection,Temperature change detection

• microSD/SDHC/SDXC memory slot (Max. 256GB)

• 24V AC, NEMA 4X, IK10

Samsung TNU-4041T quantity 1

• Imaging Device Uncooled micro bolometer
• Effective Pixels 640(H)x480(V)
• NETD <50mK
• Pixel size 17?
• Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
• Lens
• Focal Length (Zoom Ratio) 19mm Fixed
• Max. Aperture Ratio F1.0
• Angular Field of View H:32° / V:24.3° / D:39.2°
• Min. Object Distance 11m
• Focus Control Fixed
• Pan / Tilt / Rotate
• Pan Range 360° Endless
• Pan Speed 0.025°~120°/sec
• Tilt Range -90° ~40°
• Tilt Speed 0.025°~40°/sec
• Sequence Preset(300ea), Group(6ea)
• Preset Accuracy 0.3°
• Azimuth Support
• Operational
• Camera Title Displayed up to 85 characters
• Digital Image Stabilization Support(built-in gyro sensor)
• Motion Detection 8ea, 8point polygonal zones
• Color Palettes Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
• Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• PTZ Preset
• Audio In Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264 : Max. 30fps at all resolutions
• Motion JPEG : Max. 30fps
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
