WISENET TNV-7010RC

SAMSUNG TNV-7010RC

TNV-7010RC

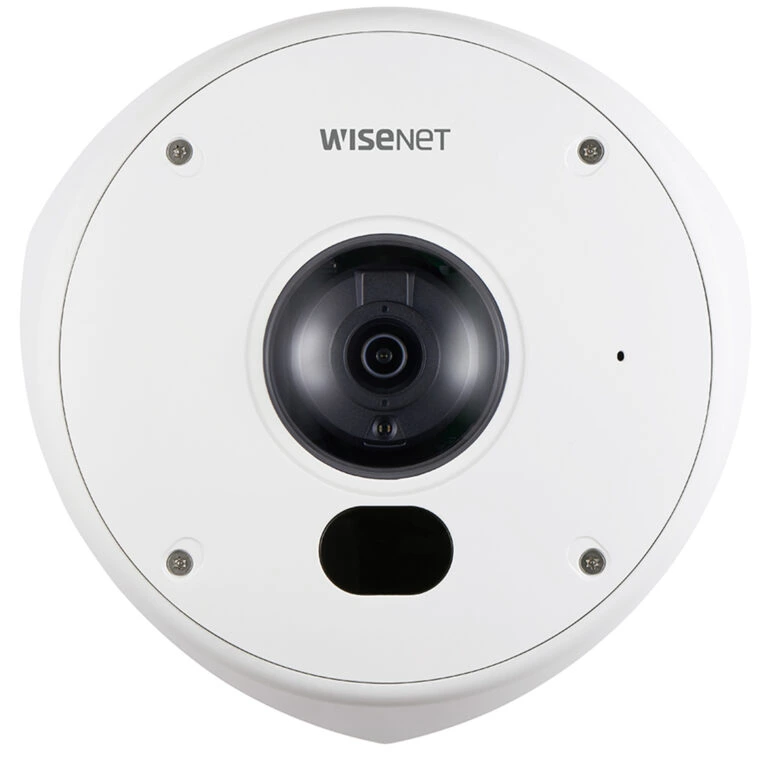

3M H.265 NW Corner Mount Camera

• Max. 3Megapixel (2048 x 1536) resolution

• Max. 30fps @ all resolutions (H.265/H.264/MJPEG)

• 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)

• Built-in 2.8mm fixed lens

• H.265, H.264, MJPEG codec support, Multiple streaming

• Day & Night, WDR (120dB)

• Video & audio analytics, Shock detection

• microSD/SDHC/SDXC memory slot (Max. 256GB)

• Hallway view, WiseStream II support

• PoE, DC 12V, IK10+

• Imaging Device 1/2.8? 3.2M CMOS
• Effective Pixels 2065(H) x 1553(V)
• Min. Illumination Color: 0.3 lux (F2.0, 1/30sec)
• B/W: 0 lux (F2.0, 1/30sec)
• Video Out CVBS : 1.0 Vp-p / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• Lens
• Focal Length (Zoom Ratio) 2.8mm fixed focal
• Max. Aperture Ratio F2.0
• Angular Field of View H: 102° / V: 75° / D: 129°
• Min. Object Distance 0.4m(1.31ft)
• Focus Control Manual
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range 0° / ±15° / 0°
• Operational
• IR Viewable Length 10m(32.8ft)
• Camera Title Displayed up to 85 characters
• Day & Night Auto(ICR)
• Backlight Compensation BLC, HLC, WDR
• Wide Dynamic Range 120dB
• Digital Noise Reduction SSNR?
• Digital Image Stabilization Support
• Defog Support
• Motion Detection 8ea, 8point polygonal zones
• Privacy Masking 32ea, polygonal zones
• – Color: Grey/Green/Red/Blue/Black/White
• – Mosaic
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed 2 ~ 1/12,000sec
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line,
• Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection,
• Digital auto tracking, Sound classification, Shock detection
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input, Motion detection
• Alarm Events File upload via FTP & E-Mail, Notification via E-Mail, Local storage (SD/SDHC/SDXC) or
• NAS recording at event triggers, External output, DPTZ preset
• Audio In Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768,
• 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264/MJPEG: Max. 30fps at all resolutions
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 8/16/32/48KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface ONVIF Profile S/G
• SUNAPI(HTTP API)
• Wisenet open platform
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Environmental
• Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification IP66, IP5K9K, IK10
• Electrical
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption 12VDC: Max. 11W
• PoE: Max. 12
• Mechanical
• Color / Material White / Aluminum
• RAL Code RAL9003
• Product dimensions / weight 236(W) x 236(H) x 126.5(V)mm(9.29? x 9.29? x 4.98?), 2200g(4.85 lb)
• • Design and specifications are subject to change without notice.
