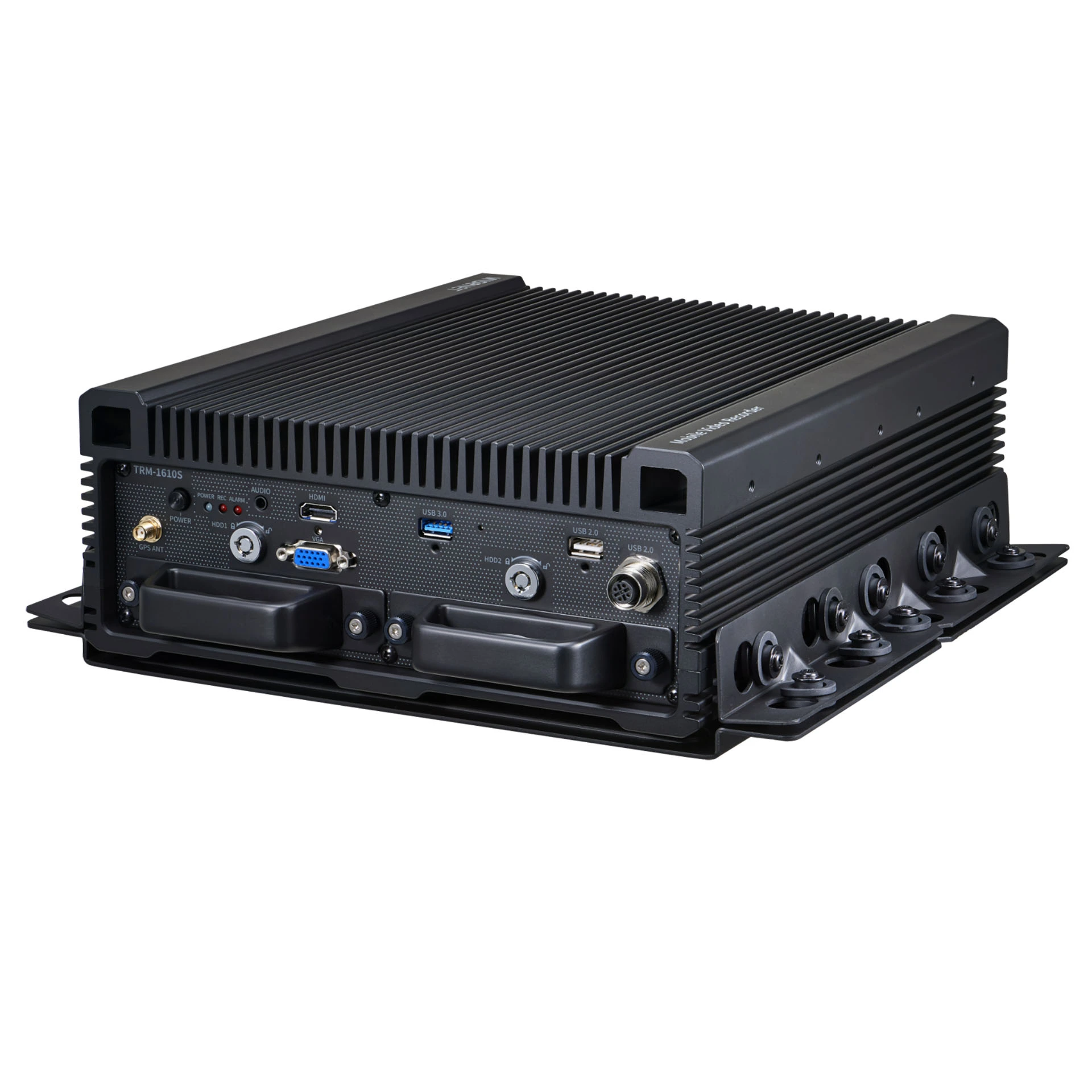

WISENET TRM-1610M

SAMSUNG TRM-1610M

• 16CH Mobile Network Video Recorder
• Up to 16CH 12megapixel supported
• H.265, H.264, MJPEG codec supported
• WiseStream support
• SUNAPI / ONVIF camerea recording
• Max. 128Mbps recording
• Plug & play by 4 PoE / PoE+ ports
• M12 connector (TRM-1610M)
• 2 SATA (Front-swap)
• – Max. 2TB (HDD, Non-RAID mode)
• – Max. 4TB (SSD, Non-RAID mode)
• RAID 1 support

DISPLAY

• N/W
• Camera
• Inputs / Resolution
• Max. 16CH (4 PoE, M12) / CIF ~ 12MP
• Max. 16CH (4 PoE, RJ-45) / CIF ~ 12MP
• Protocols
• SUNAPI, ONVIF
• Live
• Local Display
• HDMI / VGA
• Multi Screen Display
• [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence,
• [Web] 1 / 4 / 9 / 16 / Auto sequence
• Performance
• [Local monitor] 12M (30fps), 8.3M (120fps), 1080p (480fps)
• PERFORMANCE
• Operating System
• Embedded
• Linux
• Recording
• Compression
• H.265, H.264, MJPEG, WiseStream (H.265, H.264)
• Recording Bandwidth
• Max. 128Mbps
• Resolution
• CIF ~ 12MP
• Mode
• Manual, Schedule (Continuous / Event), Event (Pre / Post), Emergency
• Retention
• Retention per channel (1~400 days)
• Event Trigger
• Alarm input (16), Video loss, Camera event (Sensor, MD, Video analytics, Defocus), G-Sensor (3 Axis)
• Event Action
• E-mail, Alarm out, Buzzer, Monitor out
• Search &
• Playback
• Playback Bandwidth
• 32Mbps (16CH simultaneously)
• User
• Max. 4 users (Local 1, Remote 3)
• Mode
• Date & Time (Calendar) / Event log list / Text search / Smart search
• Simultaneous Playback
• Max. 16CH (Local monitor, CMS)
• Resolution
• CIF ~ 12MP
• Fish-eye Dewarping
• Web / CMS
• Playback Control
• Fast/Slow Forward/Backward, Move one step up/down
• Storage
• Default Built-in
• 0TB ~ 4TB
• Internal HDD
• 2 SATA (Front-swap) – Max. 2TB (HDD, Non-RAID mode) – Max. 4TB (SSD, Non-RAID mode)
• RAID
• RAID-1
• Backup
• File Backup
• Exe (GUI), JPG / AVI (Excluding GPS information) (Network)
• Function
• Multi channel (Upto 16CH) Play, Date-time / Title / GPS display
• Type / Wifi Backup Performance
• Auto (Wifi), Manual (HDD / SSD) / Max. 150Mbps (IEEE802.11ac)
• Sensor
• Input / Output
• 16 / 6
• Audio
• Input / Compression
• 16CH (Network) / G.711, G.726, AAC (16 / 48KHz)
• Audio Communication
• 2-way
• NETWORK
• Interface
• M12 (Gigabit ethernet x 2)
• RJ-45 (Gigabit ethernet x 2)
• Protocol Support
• TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS
• Hanwha DDNS
• Transmission Bandwidth
• Wired (LAN)
• Max. 256Mbps
• Max. Remote Users
• Search 3 / Live unicast 10 / Live multicast 20
• IP
• IPv4
• Security
• IP address filtering, User access log, 802.1x, Encryption
• Wireless
• WIFI
• Internal (802.11 n (2.4G) / ac (5G), Dual antenna (MIMO)
• 3G/LTE
• Support external 3G / LTE router (Ethernet)
• Language
• English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
• OS
• Window 7, 8, 10, Mac OS X (10.8 or above)
• Web Browser
• MS IE, Google Chrome, Mac Safari
• Viewer Software
• Type
• SSM Transportation, WebViewer, Wisenet Mobile Viewer
• CMS Support
• Support SDK / CGI (SUNAPI) for integration to 3’rd party VMS
• FUNCTIONS
• Camera Setup
• Register
• Auto mode, Manual mode
• Setup Items
• IP address, Add profile edit, Bitrate, Compression, Camera MD setup, Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror,
• IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway View setup, Camera webpage, WiseStream Off / On
• Camera Control
• PoE Power Control
• Monitor PoE/PoE+ power consumption, Off / On control for each
• PoE/PoE+ camera, Remote reset for each PoE/PoE+ camera
• Time Sync.
• NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time), GPS time sync
• PTZ
• Control / Preset
• Via GUI, WebViewer / 300 Presets
• Smart Phone
• Support Model / Protocol Support
• I-Phone, Android / RTP, RTSP, HTTP, CGI (SUNAPI)
• Control
• Live (16CH) : Multi-profile support, Playback (1CH)
• Max. Remote Users
• Search 3 / Live unicast 10 / Live multicast 20
• System Control
• Mouse, Web
• INDICATOR / INTERFACE
• Front
• Indicator
• LED (Status indicator) 3EA : Power 1, Alarm 1, Record 1
• Power Switch / Audio
• 1ea / Out (1ea, Line)
• HDMI / VGA
• 2ea (Support Live screen upto 16 div. mode, Clone)
• HDMI : Upto 4K (3840 x 2160), VGA : Max. 1080p
• USB / GPS
• 3ea (M12 x 1, USB-A x 2) / 1ea (SMA, F)
• HDD Key Lock
• 2ea
• Connections
• Ethernet
• LAN / WAN : 2ea (1Gbps, M12)
• PoE Camera Input : 4ea (100Mbps, M12)
• LAN / WAN : 2ea (1Gbps, RJ-45),
• PoE Camera input : 4ea (100Mbps, RJ-45)
• Control I/O
• DB15 1ea (External control box)
• (1) Status LED (2) G-Sensor (3 Axis) (3) Emergency recording button (4) Power Switch (5) Audio out
• Alarm
• DB25 1ea (1) In (16ea) (2) Out (6ea)
• Serial / WiFi
• Reserved / 2ea (RP-SMA, F)
• Reset / Power Cord
• Switch 1ea / 6pin connector 1ea
• SYSTEM
• Power Management
• Shutdown Delay
• Max. 72Hrs (User selectable), Support CGI shutdown
• Startup Delay
• 0sec (Default) ~ 10min (User selectable)
• Log
• Log List
• Max. 20,000 (System log, Event log each)
• GENERAL
• Electrical
• Input Voltage / Current
• 9 ~ 36V DC (Battery power detection & Low power limit setup)
• Power Consumption / PoE Budget
• Low temperature in use: Max. 93W, Room temperature: Max. 67W / Max. 32W
• Environmental
• Storage Temperature / Humidity
• -25°C ~ +55°C (-13°F ~ +131°F) : HDD installed
• -40°C ~ +70°C (-40°F ~ +158°F) : Industrial SSD installed / 20% ~ 85% RH
• Mechanical
• Color / Material
• Black / Aluminium
• Dimensions (WxHxD)
• 250 x 99 x 303mm (9.84? x 3.89? x 11.92?)
• Weight
• 7.35Kg (16.2 lb)
• STANDARD APPROVAL
• General
• CE, FCC, UL
• Special
• EN-50155 (Rail shock / Vib), EN-50121-4 (Railway EMC)
• Control Box
• INDICATOR / INTERFACE
• Top
• Indicator
• LED (Status indicator) 6ea : Power 1, Alarm 1, Record 1, GPS 1, RAID 1, HDD Error 1
• Emergency Button
• 1ea
• Connections
• Audio / Power Switch
• Out 1ea (RCA, Line) / 1ea
• Main I/O
• 1ea (DB9)
• SYSTEM
• Mechanical
• Color / Material
• Black / Aluminium
• Dimensions (WxHxD)
• Approx. 118 x 29.2 x 70mm (4.64? x 1.15? x 2.75?)
