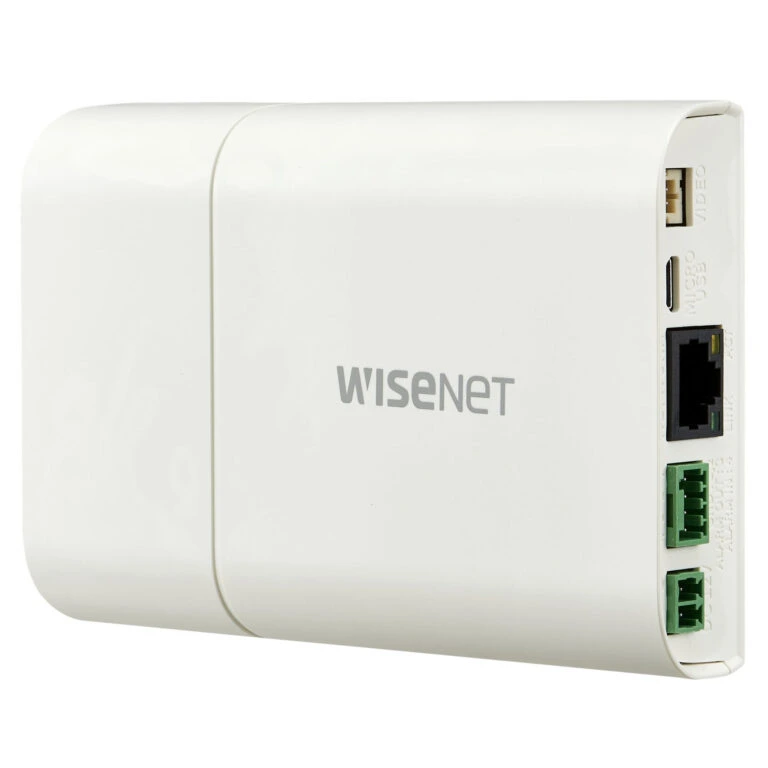

WISENET XNB-6001

SAMSUNG XNB-6001

XNB-6001

2MP Covert Camera Main Module

Wisenet X powered by Wisenet 5 SoC, 2MP covert camera main module, full HD(1080p) 60fps, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, micro SD/SDHC/SDXC, bi-directional audio, USB port for easy installation, advanced video analytics and sound classification, dual SD card slots, hallway view, HLC, defog detection, DIS, 12VDC/PoE, +14°F ~ 131°F compatible lens modules (SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V)

VIDEO

• VideoOut CVBS : 1.0 Vp-p / 75O composite, 720 x 480(N), 720 x 576(P) for installation
• USB : Micro USB type B, 1280 x 720 for installation
• OPERATIONAL
• Camera Title
• O / On (Displayed up to 85 characters) – W/W : English / Numeric / Special characters – China : English / Numeric / Special / Chinese characters – Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (Electrical) / Color / B/W
• Backlight Compensation O / BLC / HLC / WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRV (2D + 3D Noise lter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto / Manual
• Motion Detection O / On (8ea, 8point polygonal zones), Handover
• Privacy Masking
• O / On (32ea, polygonal zones) – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual/Indoor / Outdoor (included Mercury & Sodium)
• Contrast Level adjustment
• LDC (Lens Distortion Correction) O / On (5 Levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror O / On, Hallway View : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection,
• Fog & Dust detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection,
• Face detection, Motion detection, Digital auto tracking, People counting,
• Heatmap, Queue management
• Alarm I/O Input 1ea / Output 1ea
• AlarmTriggers Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload Via FTP, E-Mail, Notication via e-mail, Localstorage (SD / SDHC /
• SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStreamII Support
• VideoQuality Adjustment H.265 / H.264 / MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 Proles)
• Audio In Selectable (Mic in / Line in)
• Supply voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
• AudioOut Line out, Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol
• TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS,
• DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS,
• QoS, UPnP, Bonjour
• Security HTTPS (SSL) Login authentication, Digest login authentication,
• IP address ltering, User accesslog, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users at Unicast Mode
• Edge Storage
• SD/SDHC/SDXC (256 GB) – Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be
• downloaded.
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF prole S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• WebViewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer – Supported Browser : Google Chrome 61, MS Edge 40, Mozilla Firefox 56 (Window 64bit only), Apple Safari 10 (Mac OS X only)
• Plug-in Webviewer – Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only)
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• OperatingTemperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)/ Lessthan 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F)/ Lessthan 90% RH
• ELECTRICAL
• InputVoltage / Current 12V DC, PoE (IEEE802.3af, Class3)
• Power Consumption Max. 6.5W (12V DC), Max. 6W (PoE)
• MECHANICAL
• Color/ Material Ivory
• Dimensions(WxHxD) 131.1 x 28 x 86mm (5.16? x 1.10? x 3.39?)
