WISENET XND-6080RV

SAMSUNG XND-6080RV

XND-6080RVXND-6080RV

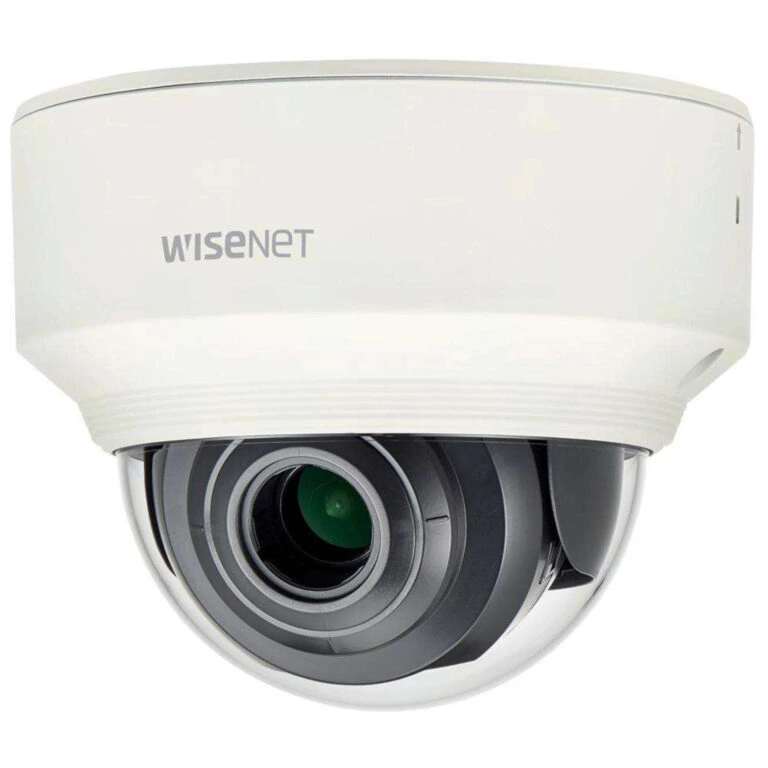

2MP Network IR Dome Camera

Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Motorized Vari-Focal Lens 4.3x (2.8~12mm) (119.5°~27.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08

Video

• Imaging Device 1/2.8? 2 MP CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M
• Effective Pixels 1,945(H) x 1,097(V) 2.13M
• Scanning System Progressive Scan
• Minimum Illumination Color : 0.015Lux (F1.4, 1/30sec), B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480, for installation
• USB : micro USB type B, 1280 x 720 for installation
• Lens
• Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
• Maximum Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
• Angular Field of View H : 119.5° ~ 27.9° / V : 62.8° ~ 15.7° / D : 142.1° ~ 32.0°
• Minimum object Distance 0.5m (1.64ft)
• Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Lens / Mount Type DC auto iris, P-Iris / Board-in type
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• Operational
• IR Viewable Length 30m (98.4ft)
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto (Input from fog detection) / Manual
• Motion Detection Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjusment
• LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror Off / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Defocus detection, Fog detection, Virtual line, Enter / Exit,
• (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto
• tracking, Sound classification
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
• SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter Support
• Network
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Maximum Framerate H.265 / H.264 : Maximum 60fps at all resolutions, MJPEG : Maximum 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Microphone in / Line in), Built-in Microphone, Maximum output
• level : 1Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out, Maximum output level : 1Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Maximum User Access 20 users at unicast mode
• Edge Storage microSD/SDHC/SDXC, 2 slots (Total 512GB) – Continuous recording (1st slot to
• 2nd slot), NAS (Network Attached Storage), Local PC for instant recording
• Web Viewer
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Plugin-Free Webviewer
• – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), MS Internet Explorer 11, Apple Safari 9 * Mac OS X only
• Central Management Software Wisenet WAVE, SmartViewer, SSM
• Environmental
• Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Vandal Resistance IK08
• Electrical
• Input Voltage / Current 12V DC ±10%, PoE (IEEE802.3af)
• Power Consumption Maximum 9W (12VDC), Maximum 10W (PoE)
• Mechanical
• Color / Material Ivory / Aluminum
• Dimensions (WxH) Ø140.8 x 113.0mm (Ø5.54? x 4.45?)
