WISENET XND-6081FZ

SAMSUNG XND-6081FZ

XND-6081FZ

2M H.265 NW Dome Camera

• Max. 2Megapixel resolution

• 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W)

• Day & Night (ICR), WDR (150dB / 120dB)

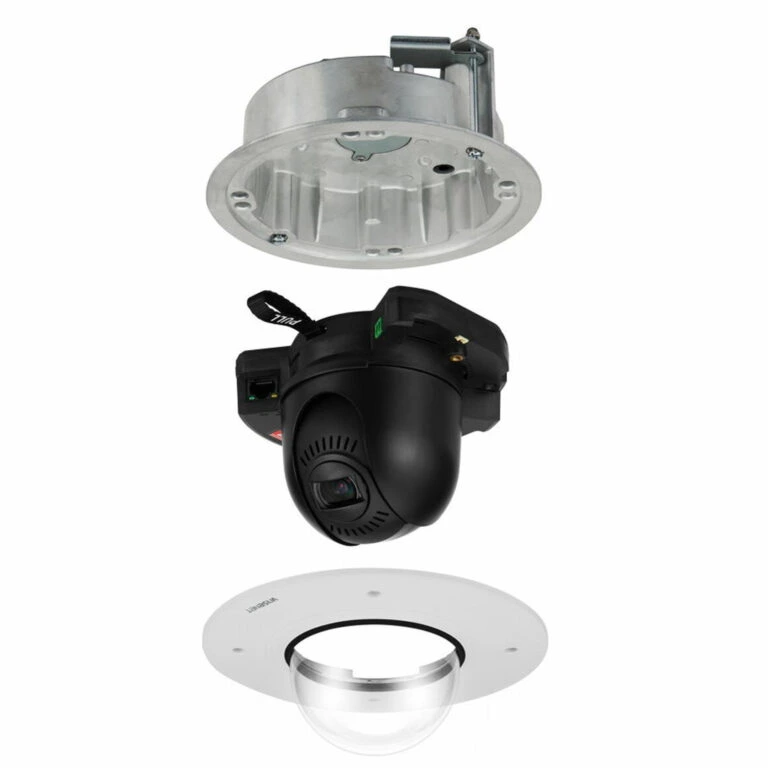

• Modular structure and motorized PTRZ

• Hallway View, WiseStreamII Support

• Video & audio analytics, Audio playback

• DIS and shock detection with built-in gyro sensor

• IP52/Plenum rate (UL2820), PoE, 12VDC

Video

• Imaging Device 1/2.8? 2MP CMOS
• Effective Pixels 1945(H)x1097(V)
• Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
• BW: 0.0015Lux (F1.4, 1/30sec)
• Video Out USB: Micro USB type B, 1280×720 for installation
• Lens
• Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
• Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
• Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
• Min. Object Distance 0.5m(1.64ft)
• Focus Control Simple focus
• Lens Type DC auto iris, P iris
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
• ±175° / 0~85° / ±175°
• Operational
• Camera Title Displayed up to 85 characters
• Day & Night Auto(ICR)
• Backlight Compensation BLC, HLC, WDR, SSDR
• Wide Dynamic Range 150dB
• Digital Noise Reduction SSNR?
• Digital Image Stabilization Support
• Defog Support
• Motion Detection 8ea, 8point polygonal zones
• Privacy Masking 32ea, polygonal zones
• – Color: Grey/Green/Red/Blue/Black/White
• – Mosaic
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
• Business Intelligence People counting, Queue management, Heatmap
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Handover
• Audio playback
• Audio In Selectable(mic in/line in),
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access Log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
• Application Programming Interface ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
• Memory 1024MB RAM, 256MB Flash
• Environmental
• Operating Temperature / Humidity -25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification IP52
• Electrical
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption PoE: Max. 10W, typical 4.8W
• 12VDC: Max. 8.5W, typical 3.71W
