WISENET XND-8080RV

SAMSUNG XND-8080RV

XND-8080RV

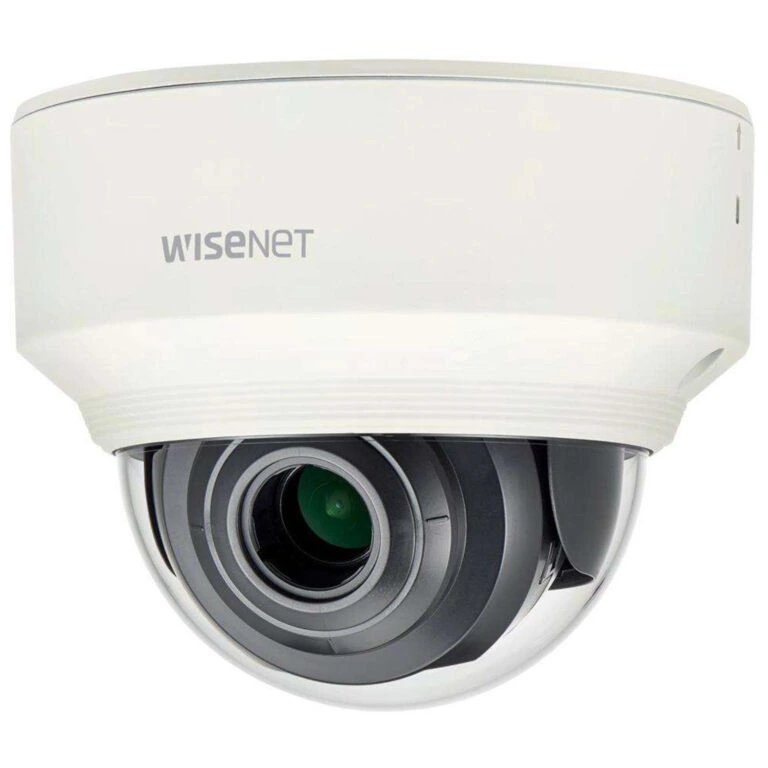

5MP Network IR Dome Camera

Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/PoE, IK08

• XND-8080RV
• VIDEO
• Imaging Device 1/1.8? 6 MP CMOS
• Total Pixels 3,096(H) x 2,094(V)
• Eective Pixels 2,616(H) x 1,976(V)
• Scanning System Progressive Scan
• Minimum Illumination Color : 0.07Lux (F1.3, 1/30sec), B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480 for installation
• USB : micro USB type B, 1280 x 720 for installation
• LENS
• Focal Length (Zoom Ratio) 3.9 ~ 9.4mm (2.4x) motorized varifocal
• Maximum Aperture Ratio F1.3
• Angular Field of View H : 92.1° ~ 38.7° / V : 67.2° ~ 29.0° / D : 119.9° ~ 48.6°
• Minimum Object Distance 0.5m (1.64ft)
• Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Lens / Mount Type DC auto iris, P-Iris / Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• IR Viewable Length 30m (98.43ft)
• Camera Title
• O / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation O / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRV (2D+3D noise lter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto (Input from fog detection) / Manual
• Motion Detection O / On (8ea, 8point polygonal zones), Handover
• Privacy Masking O / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control O / Low / Middle / High / Manual
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjusment
• LDC (Lens Distortion Correction) Off / On (5 levels with minimum / maximum)
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror O / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional/Virtual line, detection, Defocus detection, Fog
• detection, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion
• detection, Digital auto tracking, Sound classification
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notication via E-mail, Local storage (SD/SDHC/
• SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
• 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Maximum Framerate H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 proles)
• Audio In Selectable (Built-in Mic / Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out, Max output level : 1Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP,UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP,NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address ltering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Maximum User Access 20 users at unicast mode
• Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot)
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF prole S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Web Viewer
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Plugin-free Webviewer
• – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only)
