WISENET XND-L6080V

SAMSUNG XND-L6080V

XND-L6080V

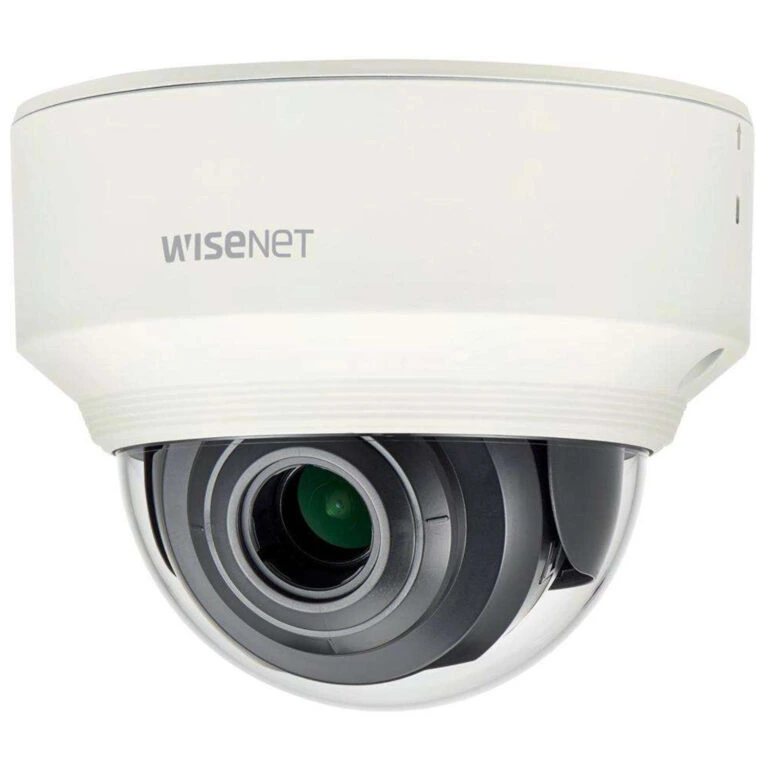

2MP Indoor Vandal Dome

Wisenet X powered by Wisenet 5 network indoor vandal dome camera, 2MP, Full HD(1080p) @60fps, motorized vari-focal lens 3.1x (3.2~10mm) (109°~33.2°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, true D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IK08

Samsung XND-L6080V quantity 1

VIDEO

• Imaging Device 1/2.8? 2M CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M
• Effective Pixels 1,945(H) x 1,097(V) 2.13M
• Scanning System Progressive Scan
• Min. Illumination Color : 0.1Lux@F1.6, B/W : 0.01Lux@F1.6
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : micro USB type B, 1280 x 720 for installation
• LENS
• Focal Length (Zoom Ratio) 3.2~10mm (3.1x) motorized varifocal
• Max. Aperture Ratio F1.6(Wide) ~ F2.9(Tele)
• Angular Field of View H : 109.0°(Wide) ~ 33.2°(Tele) / V : 57.4°(Wide) ~ 18.7°(Tele) / D : 132.0°(Wide) ~ 38.0°(Tele)
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Lens / Mount Type DC auto iris / Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNRV (2D + 3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto (Input from fog detection) / Manual
• Motion Detection Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking Off / On (32ea, polygonal zones)
• – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjusment
• LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror Off / On, Hallway view : 90°/270°
• Video Analytics Tampering, Defocus detection, Motion detection
• Alarm Triggers Motion detection, Video analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
• SDXC) or NAS recording at event triggers
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264, MJPEG : Target Bitrate Level Control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 5 profiles)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication,
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC 1slot (up to 256GB)
• – Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Supported Browser : Google Chrome 63, MS Edge 41,MS Internet Explorer 11,
• Mozilla Firefox 57 (Window 64bit only), Apple Safari 11
• (Mac OS X only)
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity -10°C ~ +55°C (-14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90%
