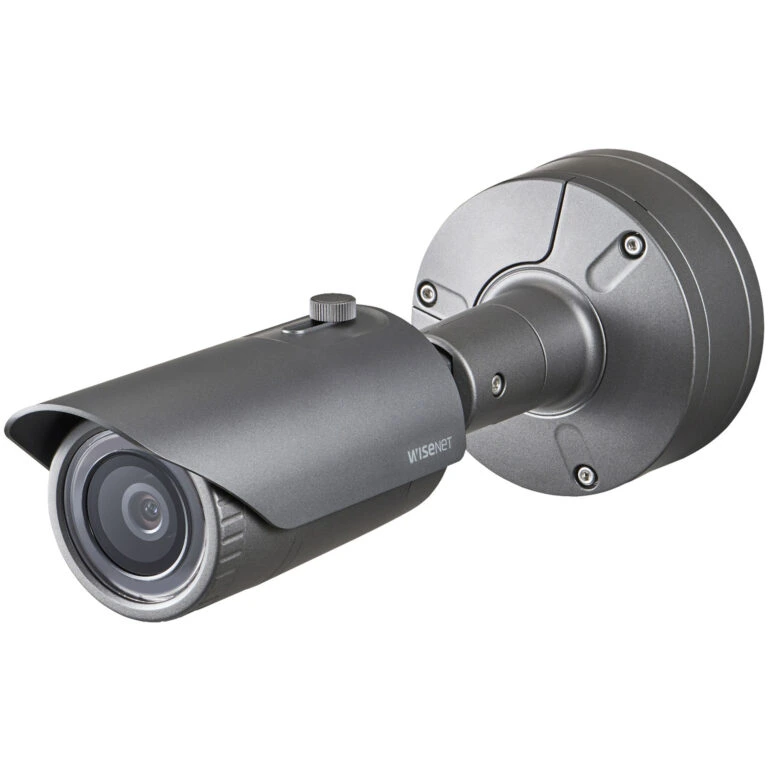

WISENET XNO-8030R

SAMSUNG XNO-8030R

XNO-8030R

5MP IR Bullet

WiseNet X powered by WiseNet 5 network outdoor vandal bullet camera, Back box, 5MP @30fps WDR off/on, 4.6mm fixed lens (77.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X

VIDEO

• Imaging Device 1/1.8? 6M CMOS
• Total Pixels 3,096(H) x 2,094(V)
• Eective Pixels 2,616(H) x 1,976(V)
• Scanning System Progressive Scan
• Min. Illumination Color : 0.2Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
• S / N Ratio 50dB
• VideoOut CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : micro USB type B, 1280 x 720 for installation
• LENS
• Focal Length (Zoom Ratio) 3.7mm xed (XNO-8020R), 4.6mm xed (XNO-8030R), 7mm xed (XNO-8040R)
• Max. Aperture Ratio F1.6
• Angular Field of View H : 97.5° / V : 71.9°/ D : 126.2° (XNO-8020R), H : 77.9° / V : 57.9° / D : 98.7° (XNO-8030R),
• H : 50.7° / V : 37.8° / D : 63.8° (XNO-8040R)
• Min.Object Distance 0.4m (1.31ft)
• Focus Control Manual
• Lens/ Mount Type Fixed / Board-in type
• OPERATIONAL
• IRViewable Length 30m (98.43ft)
• Camera Title
• O / On (Displayed up to 85 characters) – W/W : English / Numeric / Special characters – China : English / Numeric / Special / Chinese characters – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
• Backlight Compensation O / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRV (2D+3D noise lter) (O / On)
• Digital Image Stabilization O / On
• Defog O / Auto (Input from fog detection)/ Manual
• Motion Detection O / On (8ea, 8point polygonal zones), Handover
• Privacy Masking O / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjusment
• LDC (Lens Distortion Correction) O / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti icker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror O / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
• Virtual line, Enter/ Exit, (Dis)Appear, Audio detection, Face detection, Motion detection,
• Digital auto tracking, Sound classication, Heatmap, People counting, Queue management
• Alarm I/O Input 1ea / Output 1ea
• AlarmTriggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notication via E-mail, Localstorage (SD/SDHC/
• SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
• 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 30fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• VideoQuality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 proles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• AudioOut Line out, Max output level : 1Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP,UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP,NTP,HTTP,HTTPS, SSL/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,DNS,DDNS,QoS, PIM-SM,UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address ltering, User accesslog, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at unicast mode
• Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) – Continuousrecording (1stslot to 2nd slot)
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF prole S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• WebViewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only), Apple Safari 9 * Mac OS X only Plug-in Webviewer – Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• OperatingTemperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F)/ Lessthan 90% RH * Start up should be done at above -20°C (-4°F)
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F)/ Lessthan 90% RH
• Ingress Protection /Vandal Resistance IP67, IP66, NEMA 4X /IK10
• ELECTRICAL
• InputVoltage / Current 12V DC ±10%, PoE (IEEE802.3af)
• Power Consumption Max. 8.8W (12VDC), Max. 9.8W (PoE)
• MECHANICAL
• Color/ Material Dark gray / Aluminum
• Dimensions(WxH) Ø120.0 x 296.0mm (Ø4.72? x 11.65?) (Withoutsun
