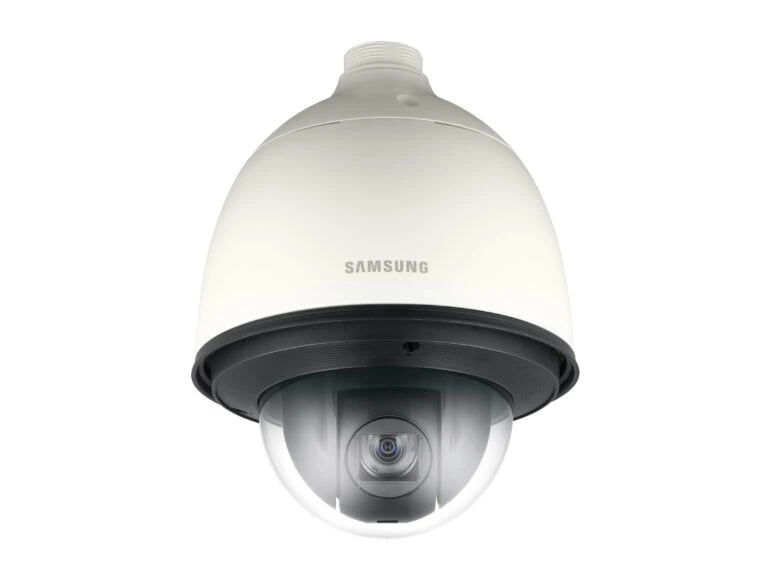

WISENET XNP-6320

SAMSUNG XNP-6320

XNP-6320XNP-6320

Network indoor PTZ camera

Wisenet X series features our Wisenet 5 chipset, 2MP resolution, Full HD(1080p) @ 60fps, 32X optical zoom lens (4.44mm ~142.6mm) (61.8º ~ 2.19º), Pan: 360° endless. Tilt: -15°~ 195°, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, HLC, defog detection, DIS(Gyro),24VAC/PoE+

VIDEO

• Imaging Device 1/2.8? 2.4M CMOS
• Total / Effective Pixels 1,981(H) x 1,288(V), 2.55M / 1,944(H) x 1,212(V), 2.35M
• Scanning System Progressive
• Min. Illumination Color : 0.05Lux (F1.6), B/W : 0.005Lux (F1.6)
• S / N Ratio 50dB
• Video Output CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : Micro USB type B, 1280 x 720, for installation
• LENS
• Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
• Max. Aperture Ratio F1.6(Wide) / F4.4(Tele)
• Angular Field of View H : 61.8°(Wide) ~ 2.19°(Tele) / V : 36.2°(Wide) ~ 1.24°(Tele)
• Min. Object Distance Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
• Focus Control Auto / Manual / One shot AF
• Lens / Mount Type DC Auto Iris / Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt Range 360° Endless / 210° (-15° ~ 195°)
• Pan / Tilt Speed Preset : 700°/sec, Manual : 0.024°/sec ~ 200°/sec
• Sequence Preset (300ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
• Preset Accuracy / Azimuth ±0.2° / Yes (E / W / S / N / NE / NW / SE / SW)
• Auto Tracking Support
• OPERATIONAL
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / Schedule
• Backlight Compensation Off / BLC / HLC / WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNRV (2D + 3D Noise filter) (Off / On)
• Digital Image Stabilization Off / On (Built-in Gyro sensor) Defog Off / Auto / Manual
• Motion Detection Off / On (8ea, Polygonal)
• Privacy Masking Off / On (24 zones of rectangle zone)
• – Color : Gray / Green / Red / Blue / Black / White
• – Zoom ratio option for mask mode – Mosaic option
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
• Digital Zoom 32x
• Flip / Mirror Off / On
• Intelligent video analytics Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter/Exit,
• (Dis) Appear, Audio detection, Face detection, Motion detection, Sound classification
• Alarm I/O Input 4ea / Output 2ea (Relay) Remote Control Interface RS-485- Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell
• Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload Via FTP and E-mail, Notification Via E-mail, TCP and HTTP,
• Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset
• Pixel counter Support
• NETWORK
• Ethernet RJ-45 (10/100 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC), MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps at all resolutions
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStreamII Support
• Video Quality Adjustment H.265 / H.264 / MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
• Audio Compression Format G.711 u-law /G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE,
• FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at Unicast mode
• Edge Storage
• Micro SD/SDHC/SDXC 2 slots (up to 512 GB) – Continuous recording (1st slot to 2nd slot)
• Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet open platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Plug-in Free Webviewer
• – Supported Browser : Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in Webviewer
• – Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only)
• Central Management Software Wisenet WAVE, SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity
• 24V AC : -50°C ~ +55°C (-58°F ~ +131°F)
• / Less than 90% RH
• PoE+ : -35°C ~ +55°C (-31°F ~ +131°F)
• / Less than 90% RH
• * Start up should be done at above -30°C (-22°F)
• -10°C ~ +55°C (+14°F ~ +131°F)
• / Less than 90% RH
• Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection / Vandal Resistance IP66 / IK10
• ELECTRICAL
• Input Voltage / Current 24V AC ±10%, PoE+ (IEEE802.3at, Class4)
• Power Consumption Max. 24W (Heater Off ), Max. 65W (Heater on, 24V AC) Max. 20W
• MECHANICAL
• Color / Material Ivory / Plastic + Metal
• Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8? x 11.56?) Ø152.0 x 218.0mm (Ø5.98? x 8.58?)
