WISENET XNV-6022R

SAMSUNG XNV-6022R

XNV-6022RXNV-6022R

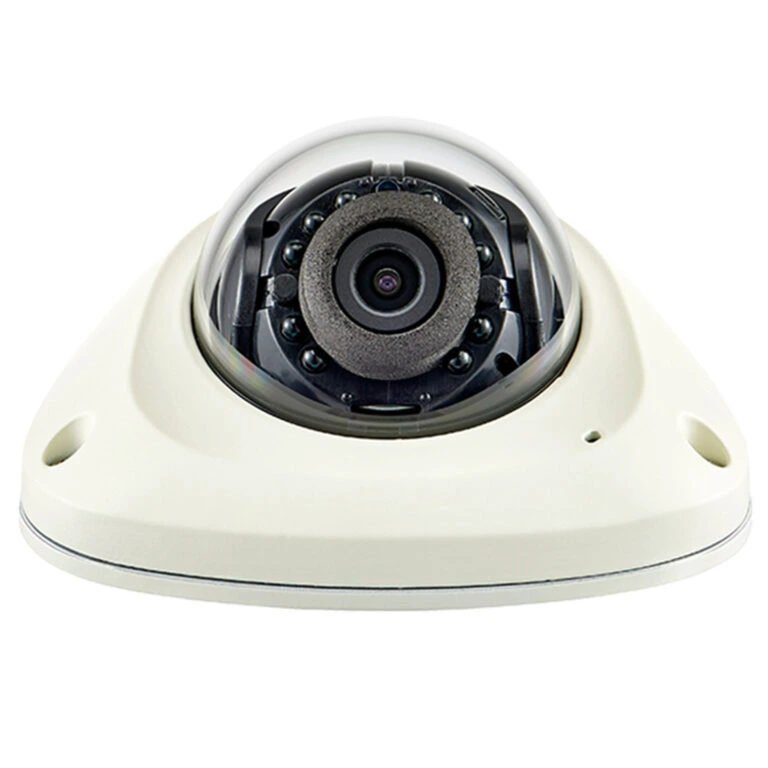

2MP Mobile Vandal Dome

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps, 3.6mm fixed lens (94.8°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, IR LEDs range of 49', true D/N, single SD card, hallway view, HLC, defog detection, DIS, PoE, IP66, IK10 NEMA 4X

VIDEO

• Imaging Device 1/2.8? 2M CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M
• Effective Pixels 1,945(H) x 1,097(V) 2.13M
• Scanning System Progressive Scan
• Min. Illumination Color : 0.04Lux (F2.0), B/W : 0Lux (IR LED On)
• S / N Ratio 50dB
• Video Out USB : Micro USB type B, 1280 x 720, for installation
• LENS
• Focal Length (Zoom Ratio) 3.6mm fixed
• Max. Aperture Ratio F2.0
• Angular Field of View H : 94.8° / V : 49.3° / D : 114.3°
• Focus Control Manual
• Lens / Mount Type Fixed / Board type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range ±5° / 0° ~ 67° / ±90°
• OPERATIONAL
• IR Viewable Length 15m (49.21ft)
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNRV (2D + 3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto / Manual
• Motion Detection Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking Off / On (32ea, polygonal zones)
• – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjustment
• LDC (Lens Distortion Correction) Off / On (5 Levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror Off / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
• Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection,
• Motion detection, Digital auto tracking, Sound classification (w/ external MIC)
• Alarm Triggers Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC)
• or NAS recording at event triggers, External output, DPTZ preset
• Audio Noise Reduction Off / On
• Pixel Counter Support
• NETWORK
• Ethernet RJ45 (10/100 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264, MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Mic in / Line in), Built-in micophone
• Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out, Max output level : 1Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz,
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication Bi-dierctional (2-Way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE,
• FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication,
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at unicast mode
• Edge Storage
• SD/SDHC/SDXC 1slot (up to 256GB)
• – Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS (Network Attached Storage), Local PC for instant recording Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
• Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer
• – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49
• (Window 64bit only), Apple Safari 9 (Mac OS X only) Plug-in Webviewer
• – Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only) Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
• * Start up should be done at above -20°C (-4°F)
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP66
• Vibration Resistance
• EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
• EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
• EN61000-4-6:2009, EN50155:2007, NEMA 4X
• Vandal Resistance IK10, NEMA4X
• ELECTRICAL
• Input Voltage / Current PoE (IEEE802.3af, Class3)
• Power Consumption Max. 6.7W
• MECHANICAL
• Color / Material Ivory (NCS S 0502-Y) / Metal
• Dimensions (WxHxD) 98.9 x 52.0 x 100.0mm (3.89? x
•
