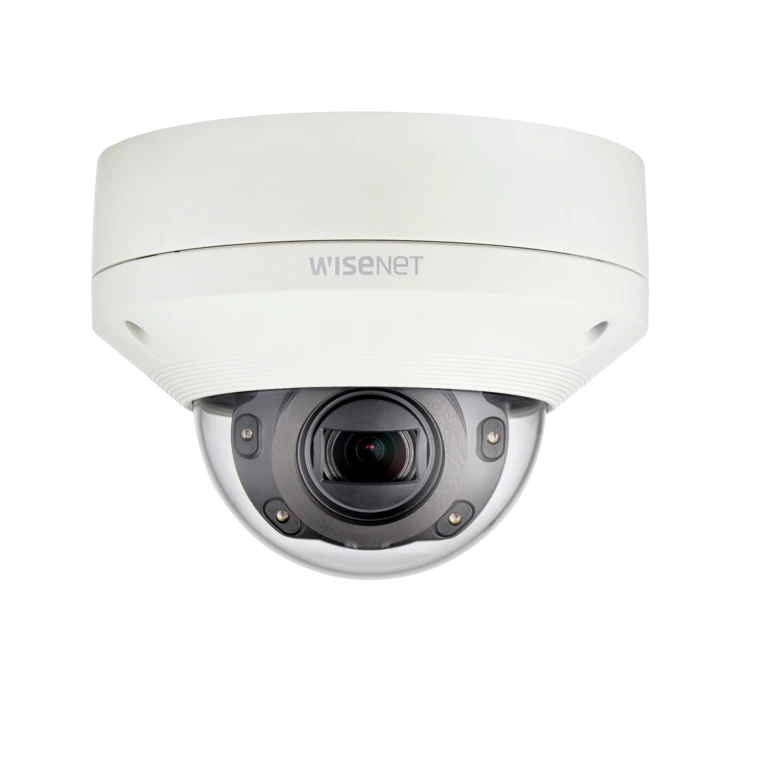

WISENET XNV-6080

SAMSUNG XNV-6080

Overview

2M Vandal-Resistant Network Dome Camera

Key Features

Max. 2megapixel (1920 x 1080) resolution

2.8 ~ 12mm (4.3x) motorized varifocal lens

Max. 60fps@all resolutions (H.265/H.264)

H.265, H.264, MJPEG codec supported, Multiple streaming

Day & Night (ICR), WDR (150dB), Defog

Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering

• Motion detection, Handover

• SD/SDHC/SDXC memory slot (Max. 512GB)

• Hallway view, WiseStream II support, IP67/IP66, NEMA 4X,

IK10

• LDC support (Lens Distortion Correction)

• PoE / 24V AC, 12V DC, Bi-directional audio support

VIDEO

• Imaging Device 1/2.8? 2M CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M
• Effective Pixels 1,945(H) x 1,097(V) 2.13M
• Scanning System Progressive Scan
• Min. Illumination Color : 0.015Lux (F1.4, 1/30sec), B/W : 0.0015Lux (F1.4, 1/30sec)
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for installation
• USB : micro USB type B, 1280 x 720 for installation
• LENS
• Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
• Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
• Angular Field of View H : 119.5° ~ 27.9° / V : 62.8° ~ 15.7° / D : 142.1° ~ 32.0°
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Lens / Mount Type DC auto iris, P-Iris / Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto
• scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Off / Auto (Input from fog detection) / Manual
• Motion Detection Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
• Gain Control Off / Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• Contrast Level adjusment
• LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror Off / On, Hallway view : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter /
• Exit, (Dis)Appear, Audio detection, Face detection, Motion detection,
• Digital auto tracking, Sound classification
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at
• event triggers, External output, DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStream II Support
• Video Quality Adjustment H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 profiles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out Line out, Max output level : 1Vrms
• Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP,
• IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS(SSL) login authentication, Digest login authentication
• IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 users at unicast mode
• Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) – Continuous recording (1st slot to 2nd slot)
• NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese,
• Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer
• Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer
• – Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49( Window 64bit only),
• Apple Safari 9 * Mac OS X only
• Plug-in Webviewer
• – Supported Browser : MS Explore 11, Apple Safari 9 * Mac OS X only
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection / Vandal Resistance IP67, IP66, NEMA 4X / IK10
• ELECTRICAL
• Input Voltage / Current 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af )
• Power Consumption Max. 7W (12VDC), Max. 7.8W (PoE), Max. 8.2W (24VAC)
• MECHANICAL
• Color / Material Ivory / Aluminum
• Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3? x 4.67
