WISENET XNV-6085

SAMSUNG XNV-6085

XNV-6085

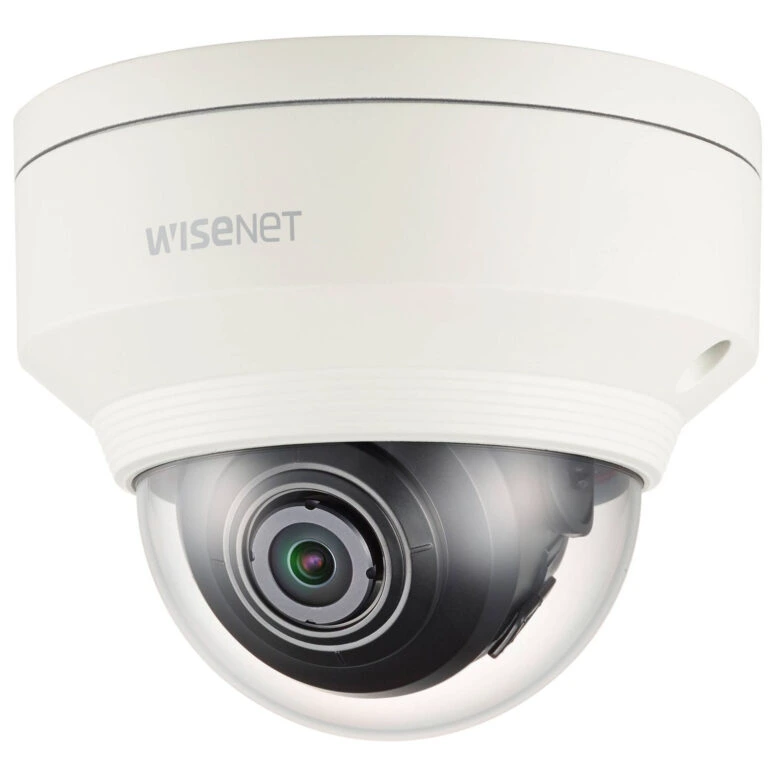

2MP eXtraLUX Vandal Outdoor PTRZ Camera

Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, eXtraLUX features 1/2? sensor with F0.94 lens, PTRZ, easy access to all ports, 2MP, full HD(1080p) @60fps WDR off/on(120dB) or @30fps WDR on(150dB), motorized vari-focal lens 4.0x (4.1~16.4mm) (100°~26.2.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, true D/N, dual SD card, hallway view, HLC, Defog detection, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F heater

VIDEO

• Imaging Device 1/2? 2.17M CMOS
• Total Pixels 1,952(H) X 1,113(V) approx 2.17M pixels
• Eective Pixels 1,945(H) X 1,097(V) approx 2.13M pixels
• Scanning System Progressive Scan
• Min. Illumination Color : 0.004 Lux (1/30sec, F0.94), B/W : 0.0004 Lux (1/30sec, F0.94)
• S / N Ratio 50dB
• VideoOut CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for Installation
• USB : Micro USB Type B, 1280 x 720 for Installation
• LENS
• Focal Length (Zoom Ratio) 4.1 ~ 16.4mm (Optical 4x)
• Max. Aperture Ratio F0.94(Wide) ~ F2.4(Tele)
• Angular Field ofView H : 100°(Wide) ~ 26.2°(Tele) / V : 54°(Wide) ~ 14.8°(Tele) / D : 116°(Wide) ~ 30°(Tele)
• Min.Object Distance 0.7m (2.30ft)
• Focus Control Simple Focus(motorized V/F)/ Manual
• Lens/ Mount Type DC Auto Iris/ Board-in Type
• PAN / TILT / ROTATE
• Pan / Tilt/ Rotate Range ±175°/ ±73°/ ±175°
• PTR Control Remote adjustment (Max. 200 cycles)
• OPERATIONAL
• Camera Title
• O / On (Displayed up to 85 Characters) – W/W : English / Numeric / Special Characters – China : English / Numeric / Special / Chinese Characters – Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White),
• Transparency, Auto scale by Resolution
• Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
• Backlight Compensation O / BLC / HLC/ WDR
• Wide Dynamic Range 150dB
• Contrast Enhancement SSDR (O / On)
• Digital Noise Reduction SSNRV (2D + 3D Noise lter) (O / On)
• Digital Image Stabilization O / On (Built-in Gyro sensor)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Defog O / Auto / Manual
• Motion Detection O / On (8ea, 8point polygonal zones), Handover
• Privacy Masking O / On (32ea, polygonal zones) – Color : Gray / Green / Red / Blue / Black / White – Mosaic
• Gain Control O / Low / Middle / High
• White Balance ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
• LDC (Lens Distortion Correction) O / On (5 Levels with min / max)
• Electronic Shutter Speed Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror O / On, Hallway View : 90°/270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
• Virtual line, Enter/ Exit, (Dis) Appear, Audio detection, Face detection,
• Motion detection, Digital auto tracking, Sound classication
• Alarm I/O Input 1ea / Output 1ea
• AlarmTriggers Alarm Input, Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events File Upload Via FTP, E-mail, Notication Via E-mail, Localstorage (SD / SDHC /
• SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter Support
• NETWORK
• Ethernet RJ-45 (10/100 BASE-T)
• Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
• 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec Manual mode (Area-based : 5ea)
• WiseStreamII Support
• VideoQuality Adjustment H.265 / H.264 / MJPEG : Target Bitrate Level Control
• Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability Multiple streaming (Up to 10 Proles)
• Audio In Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm
• AudioOut Line out (3.5mm mono jack), Max output level : 1 Vrms
• Audio Compression Format G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
• G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication Bi-directional (2-way)
• IP IPv4, IPv6
• Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
• SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security HTTPS (SSL) login authentication, Digest login authentication
• IP address ltering, User accesslog, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users at Unicast Mode
• Edge Storage
• SD / SDHC / SDXC 2Slot (Up to 512GB) – Continuousrecording (1st Slot to 2nd Slot) – Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded.
• NAS (Network Attached Storage), Local PC for Instant Recording
• Application Programming Interface ONVIF prole S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform
• Webpage Language English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese,
• Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek
• WebViewer
• Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
• Non-plugin Webviewer – Supported Browser : Google Chrome 56, MS Edge 39, Mozilla Firefox 61
• (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in Webviewer – Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only)
• Central Management Software SmartViewer, SSM
• ENVIRONMENTAL
• OperatingTemperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F)/ Lessthan 90% RH * Start up should be done at above -35°C (-31°F)
• Storage Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F)/ Lessthan 90% RH
• Ingress Protection /Vandal Resistance IP67 / IP66, NEMA 4X / IK10
• ELECTRICAL
• InputVoltage / Current 24V AC, 12V DC, PoE (IEEE802.3af, Class3)
• Power Consumption Max. 13.5W (24V AC), Max. 11.1W (12V DC), Max. 12.1W (PoE)
• MECHANICAL
• Color/ Material Ivory / Aluminum
• Dimensions(WxH) Ø160.0 x 140.0mm (Ø6.30? x 5.51?)
