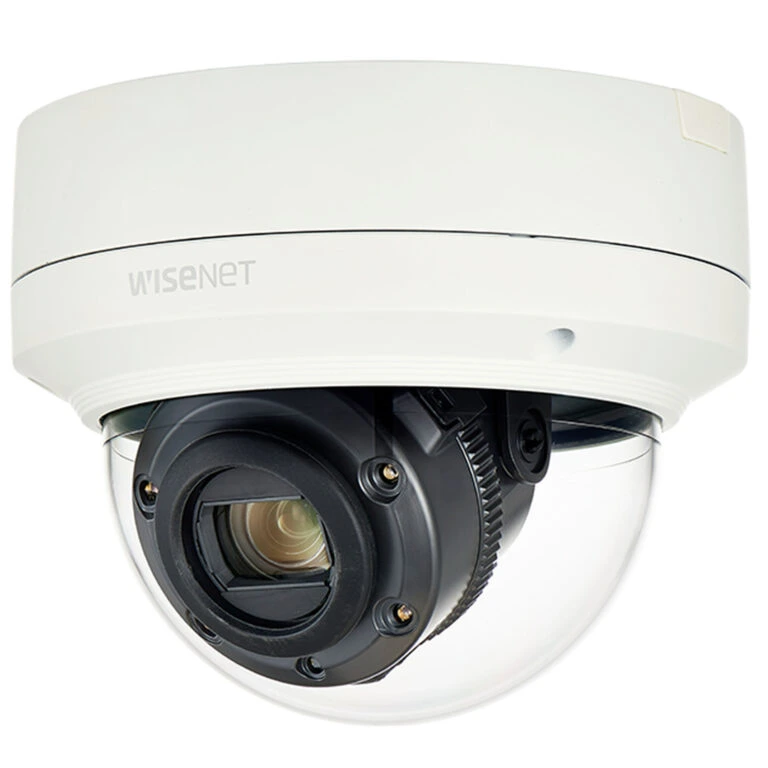

WISENET XNV-6120R

SAMSUNG XNV-6120R

XNV-6120R

2M H.265 NW IR Dome Camera

• Max. 2Megapixel (1920 x 1080) resolution

• 5.2 ~ 62.4mm (Optical 12X) Optical Lens

• Max. 60fps@all resolutions (H.265 / H.264)

• H.265, H.264, MJPEG Codec Supported

• Multiple streaming, IVA, Sound Classification

• Day & Night (ICR), WDR (150dB), Defog, Handover

• Fog Detection, Tampering, Motion Detection

• SD / SDHC / SDXC 2 Slot (Max. 512GB)

• Hallway View, WiseStreamII Support

• IR Viewable Length 70m (229.66ft)

Video

• Imaging Device 1/2.8? 2MP CMOS
• Effective Pixels 1945(H)x1097(V)
• Min. Illumination Color: 0.03Lux(F1.6, 1/30sec)
• BW: 0Lux(IR LED On)
• Video Out CVBS: 1.0 Vp-p / 75O composite, 720×480(N), 720×576(P) for installation
• USB: Micro USB Type B, 1280×720 for installation
• Lens
• Focal Length (Zoom Ratio) 5.2~62.4mm(12x) zoom
• Max. Aperture Ratio F1.6(Wide)~F3.0(Tele)
• Angular Field of View H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele)
• Min. Object Distance 2.1m(6.89ft)
• Focus Control OneshotAF
• Lens Type DC auto iris
• Pan / Tilt / Rotate
• Pan / Tilt / Rotate Range 0°~354° / 0°~75° / 0°~355°
• Operational
• IR Viewable Length 70m(229.66ft)
• Camera Title Displayed up to 85 characters
• Day & Night Auto(ICR)
• Backlight Compensation BLC, HLC, WDR, SSDR
• Wide Dynamic Range 150dB
• Digital Noise Reduction SSNR?
• Digital Image Stabilization Support
• Defog Support
• Motion Detection 8ea, 8point polygonal zones
• Privacy Masking 32ea, polygonal zones
• – Color: Grey/Green/Red/Blue/Black/White
• – Mosaic
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation Flip, Mirror, Hallway view(90°/270°)
• Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Alarm I/O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Audio In Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out Line out, Max.output level: 1Vrms
• Network
• Ethernet RJ-45(10/100BASE-T)
• Video Compression H.265/H.264: Main/Baseline/High, MJPEG
• Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
• Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
• MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec Manual(5ea area), WiseStream?
• Bitrate Control H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Audio Compression G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
• Application Programming Interface ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
• Recommended Browser: Google Chrome
• Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory 1024MB RAM, 256MB Flash
• Environmental
• Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH
• * Start up should be done at above -35°C
• Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification IP66/IP67, IK10, NEMA 4X
• Electrical
• Input Voltage PoE(IEEE802.3af, Class3), 12VDC, 24VAC
• Power Consumption PoE : Max 12.95W
• 12VDC : Max. 11.5W
• 24VAC : Max. 14W
• Mechanical
• Color / Material Ivory / Aluminum
• Product dimensions / weight Ø160×128.5mm(6.30?x5.06?), 995g(2.19 lb)
