WISENET XNV-8080RS

SAMSUNG XNV-8080RS

XNV-8080RS

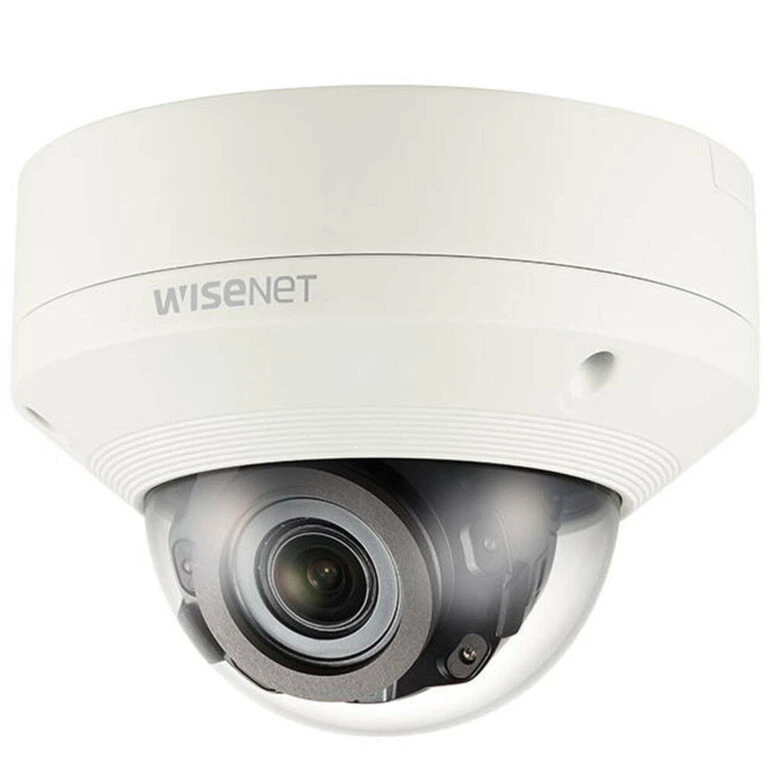

5MP Stainless Steel IR Dome

Wisenet X powered by Wisenet 5 network IR stainless steel dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 164', true D/N, dual SD card, hallway view, HLC, defog detection, DIS, 12VDC/24VAC/PoE, IP66, IK10, NEMA 4X, -40°C ~ +55°C (-40°F ~ +131°F)

• VIDEO
• Imaging Device 1 / 1.8? 6M CMOS
• Total Pixels 3096 (H) x 2094 (V)
• Effective Pixels 2616 (H) x 1976 (V)
• Scanning System Progressive
• Min. Illumination Color : 0.07 Lux (F1.3, 1 / 30sec), B/W : 0 Lux (IR LED On)
• S / N Ratio 50dB
• Video Out CVBS : 1.0 Vp-p / 75O composite, 720×480 (N), 720×576 (P), for installation
• USB : Micro USB type B, 1280×720, for installation
• LENS
• Focal Length (Zoom Ratio) 3.9~9.4mm (2.4x) motorized varifocal
• Max. Aperture Ratio F1.3
• Angular Field of View H: 92.1°, V: 67.2°, D: 119.9° / H: 38.7°, V: 29.0°, D: 48.6°
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Lens Type DC Auto Iris, P-iris
• Mount Type Board-in type
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
• OPERATIONAL
• IR Viewable Length 50m (164.04ft)
• Camera Title
• Off / On (Displayed up to 85 characters)
• – W/W : English / Numeric / Special characters
• – China : English / Numeric / Special / Chinese characters
• – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
• Auto scale by resolution
• Day & Night Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range 120dB
• Contrast Enhancement SSDR (Off / On)
• Digital Noise Reduction SSNR5 (2D+3D Noise Filter) (Off / On)
• Digital Image Stabilization Off / On
• Defog Auto / Manual / Off
• Motion Detection Off / On (8ea, 8 point polygonal zones), Handover
• Privacy Masking
• Off / On (32ea, polygonal zones)
• – Color : Grey / Green / Red / Blue / Black / White
• – Mosaic
• Gain Control Off / Low / Middle / High / Manual
• White Balance ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Contrast Level adjustment
• LDC On / Off (5 levels with Min / Max)
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec)
• Digital PTZ 24x, Digital PTZ (Preset, Group)
• Flip / Mirror On / Off, Hallway view : 90° / 270°
• Video & Audio Analytics
• Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line,
• Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection,
• Digital auto tracking, Sound classification
• Alarm I / O Input 1ea / Output 1ea
• Alarm Triggers Alarm input, Motion detection, Video & audio analytics, Network disconnect
• Alarm Events
• File upload via FTP, E-Mail / Notification via E-Mail /
• Local storage (SD / SDHC / SDXC) or NAS recording at event triggers / External output /
• DPTZ preset
• Pixel Counter Support
