WISENET XNV-8081Z

SAMSUNG XNV-8081Z

XNV-8081Z

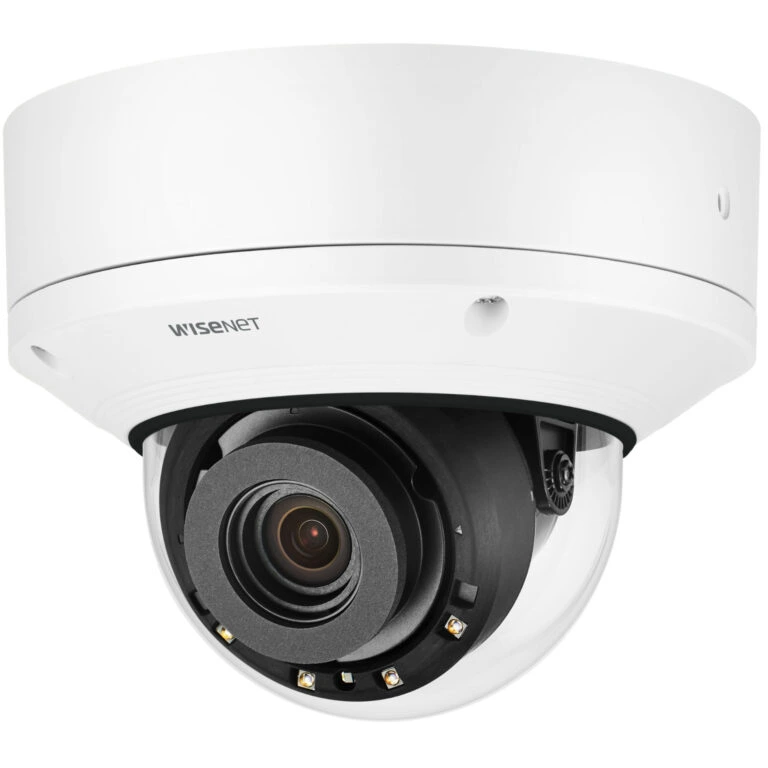

5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera

The Wisenet X series PLUS powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Samsung XNV-8081Z quantity 1

• XNV-6081Z XNV-8081Z
• VIDEO
• Imaging Device 1/2.8? 2MP CMOS 1/1.8? 6MP CMOS
• Effective Pixels 1945(H) x 1097(V) 2616(H) x 1976(V)
• Min. Illumination Color : 0.015Lux (F1.4, 1/30sec)
• BW : 0.0015Lux (F1.4, 1/30sec)
• Color : 0.07Lux (F1.2, 1/30sec)
• BW : 0.007Lux (F1.2, 1/30sec)
• Video Out USB : Micro USB type B, 1280×720 for installation
• LENS
• Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal 3.6~9.4mm(2.6x) motorized varifocal
• Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele) F1.2(Wide) ~ F2.4(Tele)
• Angular Field of View
• H : 119.5°(Wide)~27.9°(Tele)
• V : 62.8°(Wide)~15.7°(Tele)
• D : 142.1°(Wide)~32.0°(Tele)
• H : 102.5°(Wide)~38.7°(Tele)
• V : 74.2°(Wide)~29.0°(Tele)
• D : 135.5°(Wide)~48.6°(Tele)
• Min. Object Distance 0.5m (1.64ft)
• Focus Control Simple focus
• Lens Type DC auto iris, P-iris
• PAN / TILT / ROTATE
• Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles) ±175° / 0~85° / ±175°
• OPERATIONAL
• Camera Title Displayed up to 85 characters
• Day & Night Auto (ICR)
• Backlight Compensation BLC, HLC, WDR, SSDR
• Wide Dynamic Range 150dB 120dB
• Digital Noise Reduction SSNR V
• Digital Image Stabilization Support
• Defog Support
• Motion Detection 8ea, 8point polygonal zones
• Privacy Masking
• 32ea, polygonal zones
• – Color : Grey/Green/Red/Blue/Black/White
• – Mosaic
• Gain Control Low / Middle / High
• White Balance ATW / AWC / Manual / Indoor / Outdoor
• LDC Support
• Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Digital PTZ Support (Preset, Group)
• Video Rotation Flip, Mirror, Hallway view (90°/270°)
• Analytics
• Defocus detection, Directional detection, Fog detection, Face detection, Motion detection,
• Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line,
• Audio detection, Sound classification, Shock detection
• Business Intelligence People counting, Queue management, Heatmap
• Alarm I / O Input 1ea / Output 1ea
• Alarm Triggers Analytics, Network disconnect, Alarm input
• Alarm Events
• File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• Handover
• Audio playback
• Audio In Selectable (mic in/line in),
• Supply voltage : 2.5VDC (4mA), Input impedance : 2K Ohm
• Audio Out Line out, Max. output level : 1Vrms
• NETWORK
• Ethernet RJ-45 (10/100BASE-T)
• Video Compression H.265/H.264 : Main / Baseline / High, MJPEG
