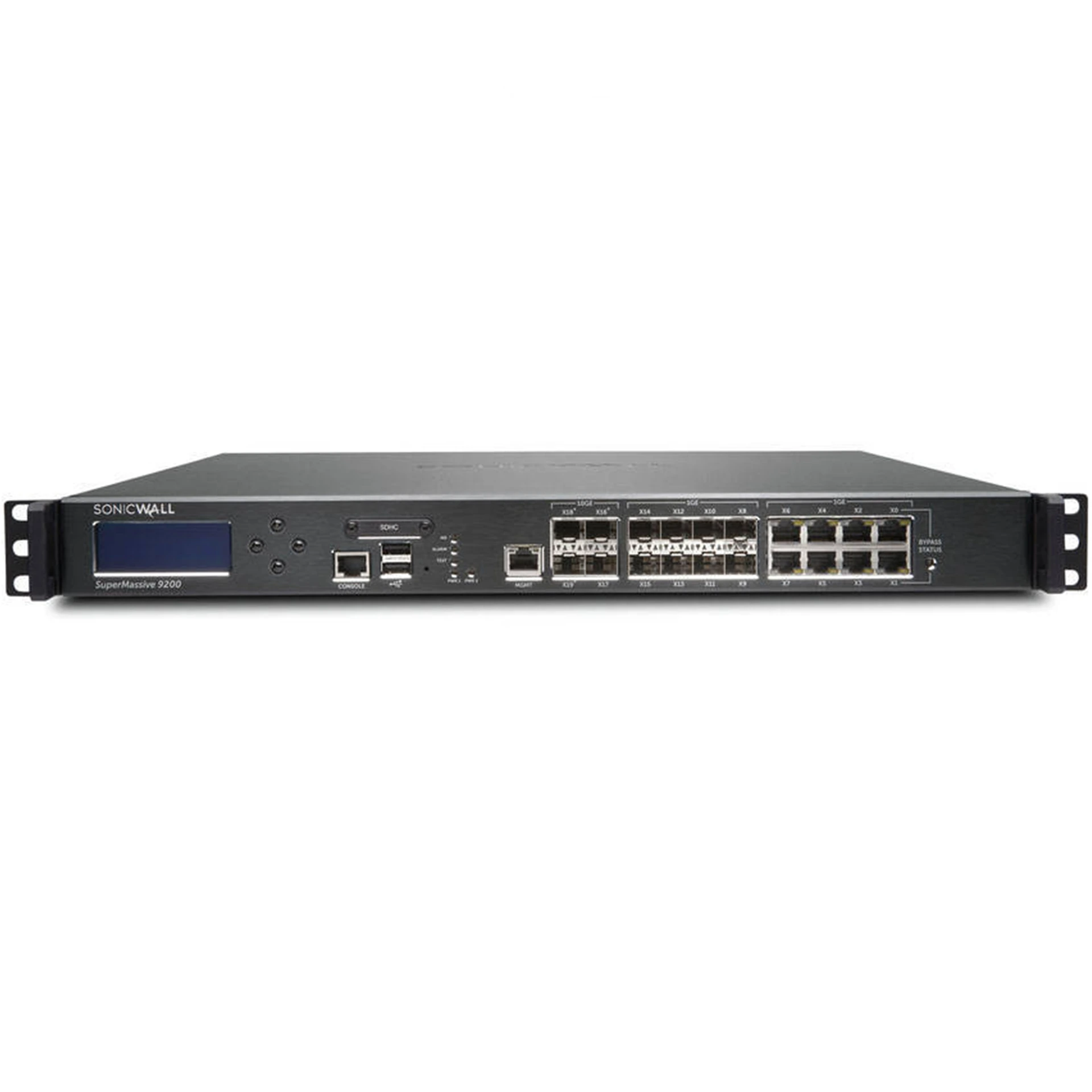

SonicWall SuperMassive 9200

SonicWall SuperMassive 9200

SonicWall SuperMassive 9200 TotalSecure is an appliance, service, and support bundle that delivers the power and convenience of all-in-one network protection by combining gateway anti-virus, anti-spyware intrusion prevention, application

Description

Benefits

Next-generation firewall

Application intelligence

Intrusion prevention

Deep Packet Inspection for SSL encrypted traffic (DPI-SSL)

SonicWALL Mobile Connect

High performance

Deep packet inspection firewall

Virtual private networking

SSL VPN remote access

Intuitive management

Powerful reporting

Advanced clustering

WAN acceleration

Intrusion prevention

URL filtering

Product Code : 01-SSC-3810

Group

network Devices

Mark

SonicWALL

compatibility

pc

Model

9200

product line

SonicWALL Supermassive

Manufacturer

SonicWALL

Number of packages

1

Network

Features

High Availability / Intrusion Prevention System (IPS) / URL filtering / Deep Inspection / DDos attack prevention / NAT support / Anti-malware protection / Quality of Service (QoS) / RADIUS support / DHCP server / Reset / Bandwidth Control / Dual blowers quick replacement / Link Aggregation Control Protocol (LACP) / NetFlow / IPFIX / VPN support / activity / LDAP support / Stateful Packet Inspection (SPI) / DoS attack prevention / Manageable

Data Link Protocol

Gigabit Ethernet / 10 Gigabit Ethernet

Connectivity Technology

cabling

Model

rack-mountable

Network

safety

Compliant Standards

IEEE 802.1p

Routing Protocol

Policy-based routing (PBR) / OSPF / RIP-1/2-RIP / BGP / static IP routing

status Indicators

Power / Test mode / Alarm

Remote Management Protocol

SNMP 2 / HTTPS / CLI / SNMP 3 / HTTP

Network / Transport

TCP / IP / PPTP / L2TP / DHCP / ICMP / IP / IPSec / PPPoE

Dimensions

Weight

8.2 Kg

Height

05.04 cm

Depth

48.5 cm

Width

43.3 cm

RAM

RAM

8 GB

Ram

8 GB]

Environment

Operating humidity

10 to 90% (non-condensing)

Max. Operating Temperature

40 ° C

Mine. operating temperature

0 ° C

Manufacturer Support

Service Packages

3 years SonicWALL Comprehensive Gateway Security Suite

Miscellaneous

Encryption Algorithm

FIPS 140-2 / 128-bit AES / AES 192-bit / 256-bit AES / DES / Trippel DES / MD5 / SHA-1

Rack Mounting Kit

included

Height (Rack Units)

1

Authentication

LDAP / Active Directory / xauth authentication / RADIUS

Price type

SonicWALL Secure Upgrade Plus Program

Compliant Standards

RoHS / KCC / WEEE / ANATEL / FCC Class A certified / UL / TUV GS / VCCI / C-Tick / BSMI / CUL / NOM / CB

With us

type OS

SonicOS

Card reader

Supported Flash Memory Cards

SDHC memory card

Chassis

built-in devices

Status LCD

Power Device

Power consumption

300 Watt

Nominal voltage

AC 120/230 V

Hot-Plug

Hot-Plug

Type

internal power supply

Max. Number supported

2

number installed

2

frequency required

50/60 Hz

Expansion slots

expansion Opening

1 pc., Vacant number: 1

cable information

serial cable

Included Qty: 1

network Cable

Included Qty: 1

Performance

Fremsendings performance (IMIX)

4.4 Gbps

VPN throughput

5 Gbps

Anti-malware production

3.5 Gbps

IPS throughput

5 Gbps

Aplikations capacity

5 Gbps

Firewall throughput

15 Gbps

Capacity

DPI connections

Value: 1000000

Connection / users

Value: 1250000

Virtual interfaces (VLANs)

Value: 512

SSL VPN tunnels

Value: 2

VPN client licenses

Value: 2000

VPN tunnels (site-to-site)

Value: 6000

Maximum application cores

Value: 24

interface delivered

10GBase-X

4 pcs., SFP +

1000Base-X

8 pcs., SFP (mini-GBIC)

1000Base-X

8 pcs., SFP (mini-GBIC)

1000Base-T

8 pcs., RJ-45

Administration

1 pc., RJ-45

USB

2 pcs., Type A

1000Base-T (administration)

1 pc., RJ-45

IP telephony

VoIP

Yes

VoIP Protocols

H.323 / SIP
