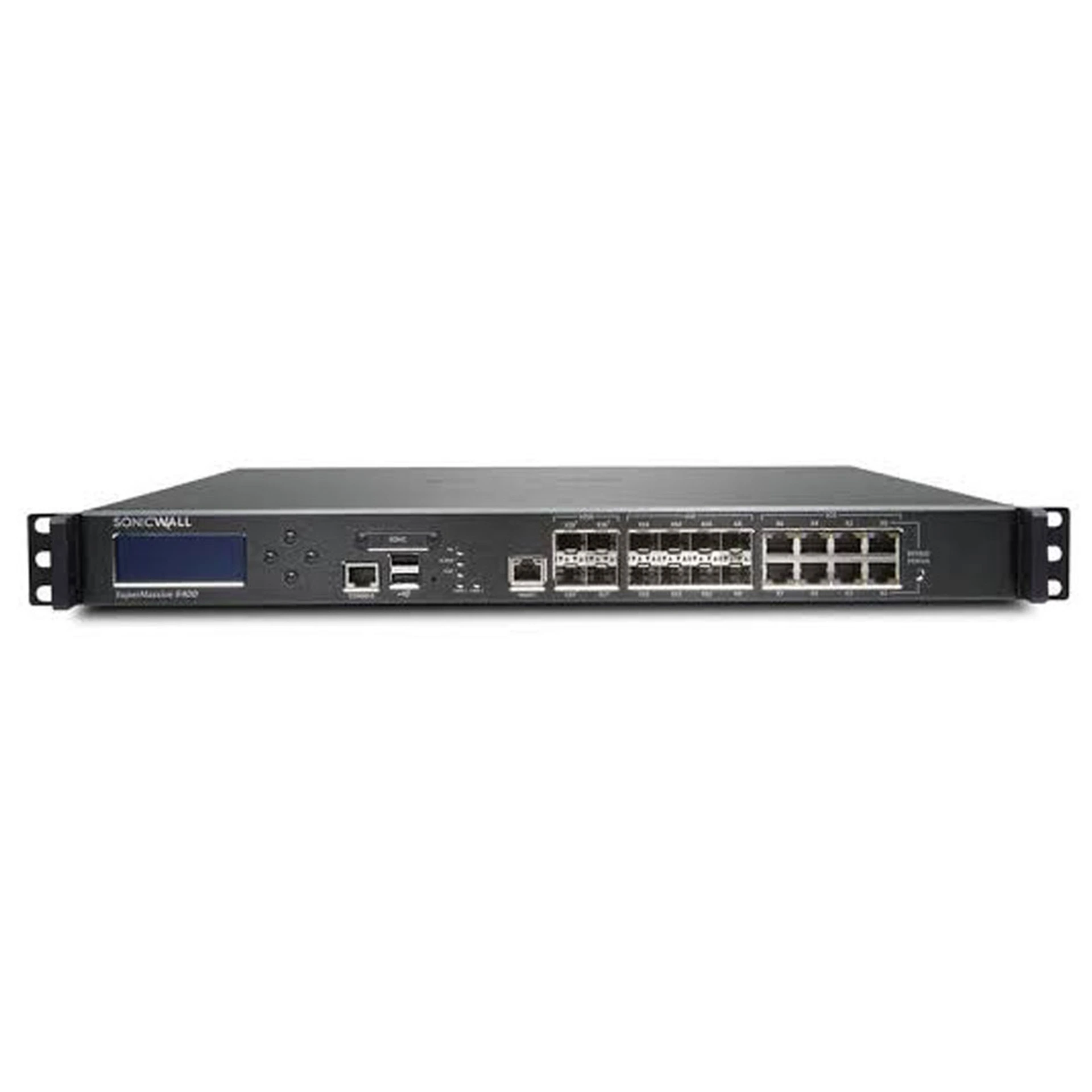

SonicWall SuperMassive 9400

SonicWall SuperMassive 9400

The SuperMassive 9400 is designed specifically with the needs of emerging enterprises in mind. The hardware and associated security services prevent intrusions, block malware and control access to questionable web

Description

Benefits

Intrusion prevention with sophisticated anti-evasion technology blocks the latest attacks

Network-based anti-malware with CloudAssist provides 24×7 advanced protection from malicious threats

SSL decryption and inspection protect against threats hidden in encrypted traffic

Integrated wireless controller enables easy-to-deploy Clean Wireless technology

Easy-to-integrate user authentication support for a broad set of user identification technologies (SSO/LDAP/RADIUS)

WAN failover and load balancing enhance business continuity and network optimization

Content and URL filtering delivers protection and productivity by controlling access to web content

Real-time application visibility, control and bandwidth management offer insight into and control of network traffic

High port density with more interfaces to help in more complex network environments

Integrated 10 Gb SPF+ interfaces for future investment against growing bandwidth needs

General

Device Type

Security appliance

Height (Rack Units)

1U

Built-in Devices

Status LCD

Width

17 in

Depth

19.1 in

Height

1.8 in

Weight

18.08 lbs

Processor / Memory / Storage

RAM

16 GB

Networking

Form Factor

Rack-mountable

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Network / Transport Protocol

TCP/IP, PPTP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP

Routing Protocol

OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR)

Remote Management ProtocolRemove product image

SNMP, HTTP, HTTPS, SSH, CLI

Performance

Firewall throughput: 20 Gbps

Application throughput: 8 Gbps

IPS throughput: 8 Gbps

Anti-malware throughput: 4.5 Gbps

VPN throughput: 10 Gbps

Forwarding performance (IMIX): 5.5 Gbps

Capacity

Maximum application cores: 32

VPN tunnels (site-to-site): 10000

VPN client licenses: 2000

SSL VPN tunnels: 2

Virtual interfaces (VLANs): 512

Connection / user qty: 1250000

DPI connections: 1000000

Status Indicators

Power, test mode, alarm

Features

NAT support, VPN support, load balancing, LDAP support, Stateful Packet Inspection (SPI), DoS attack prevention, manageable, High Availability, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, reset button, bandwidth control, hot swappable dual fans, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX

Encryption Algorithm

DES, Triple DES, MD5, SHA-1, FIPS 140-2, 128-bit AES, 192-bit AES, 256-bit AES

Authentication Method

RADIUS, LDAP, Active Directory, XAUTH authentication

Compliant Standards

IEEE 802.1p

IP Telephony

VoIP Protocols

H.323, SIP

Supported Flash Memory Cards

SDHC Memory Card

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x expansion slot

Interfaces

1 x 1000Base-T (management) – RJ-45

2 x USB – Type A

1 x management – RJ-45

8 x 1000Base-T – RJ-45

8 x 1000Base-X – SFP (mini-GBIC)

4 x 10GBase-X – SFP+

Miscellaneous

Compliant Standards

1 x network cable

1 x serial cable

Rack Mounting Kit

Included

Compliant Standards

FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI, cUL, NOM, CB, RoHS, KCC, WEEE, ANATEL

Power

Power Device

Internal power supply – hot-plug

Installed Qty

2

Max Supported Qty

2

Voltage Required

AC 120/230 V ( 50 – 60 Hz )

Power Consumption Operational

300 Watt

Power Provided

850 Watt

Software / System Requirements

OS Provided

SonicOS

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 – 90% (non-condensing)
