JL001A Specifications

Product Number

JL001A

Type

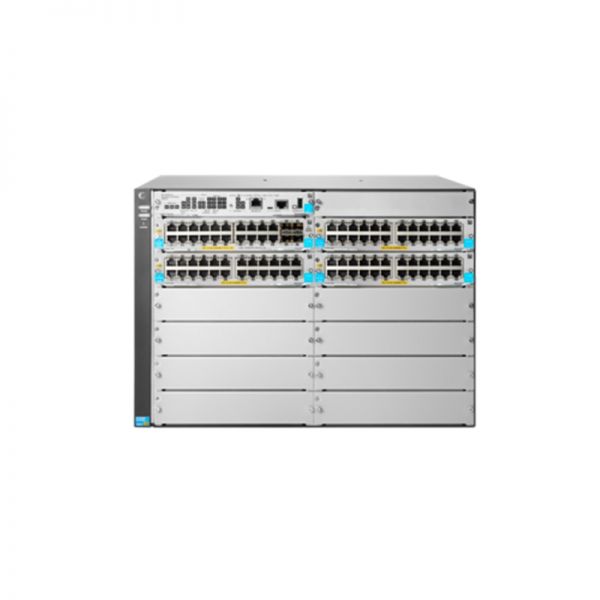

HPE 5412R 92GT PoE+/4SFP+ (No PSU) v3 zl2 Switch

Included accessories

1 HPE 5400R zl2 Management Module (J9827A)

1 HPE 5412R zl2 Switch Fan Tray (J9832A)

3 HPE 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)

1 HPE 20-port 10/100/1000BASE-T PoE+/ 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)

I/O ports and slots

92 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,

IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX:

half or full; 1000BASE-T: full only

4 open 10GbE SFP+ transceiver slots

8 open module slots

Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart

Rate Multi-Gigabit or 24 40GbE ports, or a combination

Power supplies

4 power supply slots

2 minimum power supplies required (ordered separately)

Fan Tray

Includes: 1 x J9832A

1 fan tray slot

Dimensions (W x D x H)

17.5(w) x 17.75(d) x 12.1(h) in. (44.45 x 45.09 x 30.73 cm) (7U height)

Weight

45.19 lb (20.5 kg)

Operating temperature

32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity Shield installed

Operating relative humidity

15% to 95% @ 113°F (45°C), noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

Up to 10,000 ft (3 km)
