CISCO 881-K9

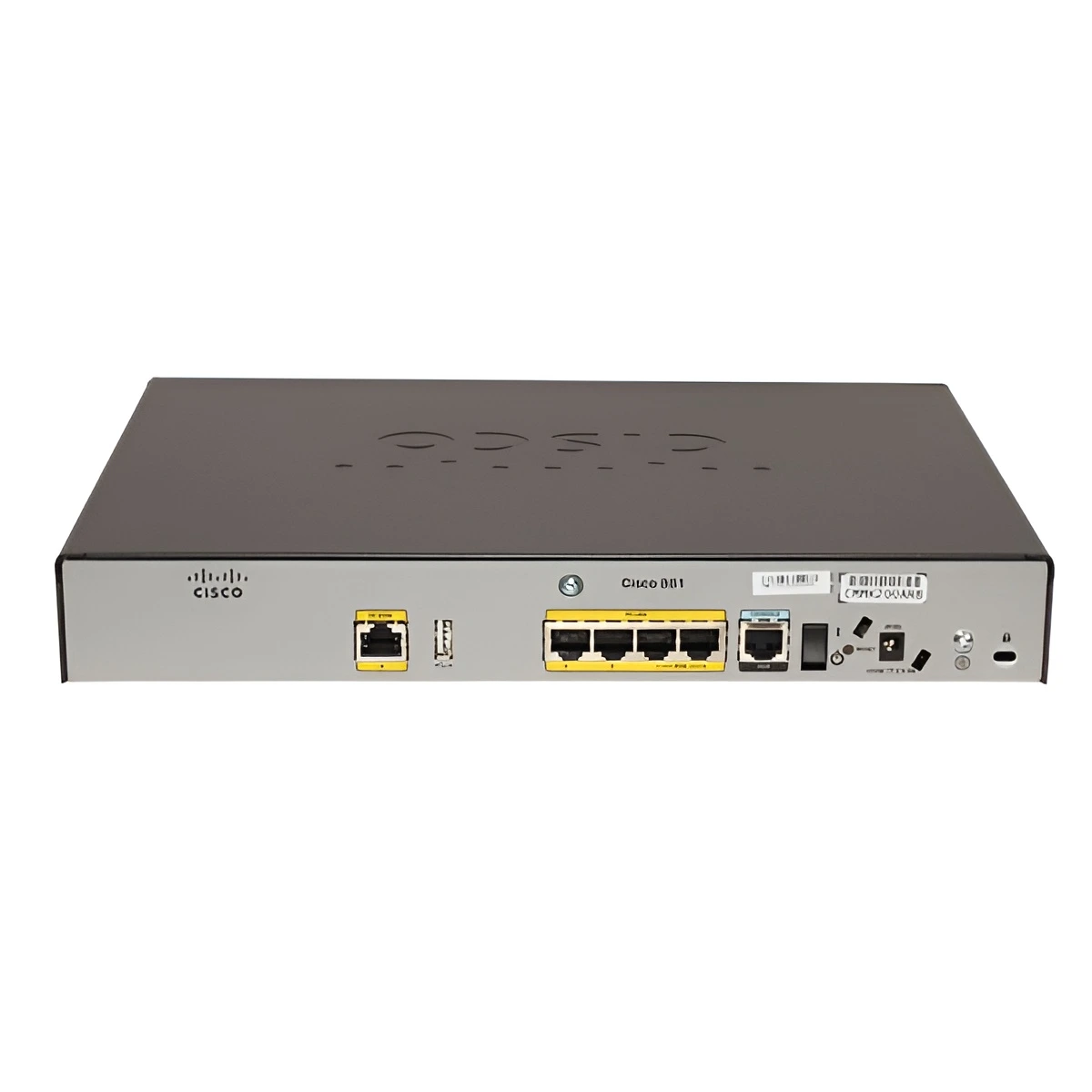

The Cisco C881 ISR router has a lead-free, fanless chassis and is updated versions of the previous Cisco 881 router.

Cisco C881-K9 integrated Services Router is fixed-configuration router, designed for small business, small branch office and enterprise teleworkers. The router provides the enhanced feature of security, including firewall, intrusion prevention, content filtering, and sencryption for VPNs, with no requiring additional licenses.

C881-K9 Specifications
Product TypeCisco 881 Ethermet Security Router
Connectivity TechnologyWired
Data link Technology10/100 Fast Ethernet
CapacityNAT transpancy, Firewall stateful failover
, 20 Ipsec tunnel
Routing featuresIPv4/IPv6 multicast, OSPF, BGP, EIGRP,
NHRP, L2TPV3,BFD, VRF-lite, VRRP,
HSRP, MHSRP
Switching featuresIGMPv3 snooping, 802.1x
Security featuresDMVPN, Ipsec over IPv6, Ipsec stateful
failover, SSL
Firewall stateful failover, IPS
Qos FeaturesLLQ, WFQ, CBWFQ, CBTS, CBTP, PBR
Encryption AlgorithmDES, 3DES, AES 128, AES 192, AES
256
DRAM Memory256 (default) / 768 MB (Max)
Flash Memory128 MB
LED status Lights IndicatorsPort status, Power
Console or Auxiliary portRJ-45
Router Interfaces?LAN: 4*10Base-T/100Base-TX - RJ-45
?Management: 1*console - RJ-45
?WAN : 1 x 10Base-T/100Base-TX - RJ-45
?USB : 1 x 4 PIN USB Type A
Software / Licesne? S880DUDK9: Cisco 880 Series IOS
universal DATA
?SL-880ADSEC (Default: Cisco 880
Advanced Security Image Feature License
?SL-880-AIS ( upgrade): Cisco advanced IP
services Image Feature License
?L-SL-800-SEC-K9: Advance IP PAK for
Cisco 800 Series
?FL-WEBVPN-10-K9: Feature License SSL
VPN for Up to 10 Users (incremental), for
12.4T based IOS releases only
?FL-SSLVPN-10-K9: Feature License SSL
VPN for Up to 10 Users (incremental), for
15.x based IOS releases only
?C880data-universalk9-mz: Universal image
for Cisco 880 ISR Data Router Series
