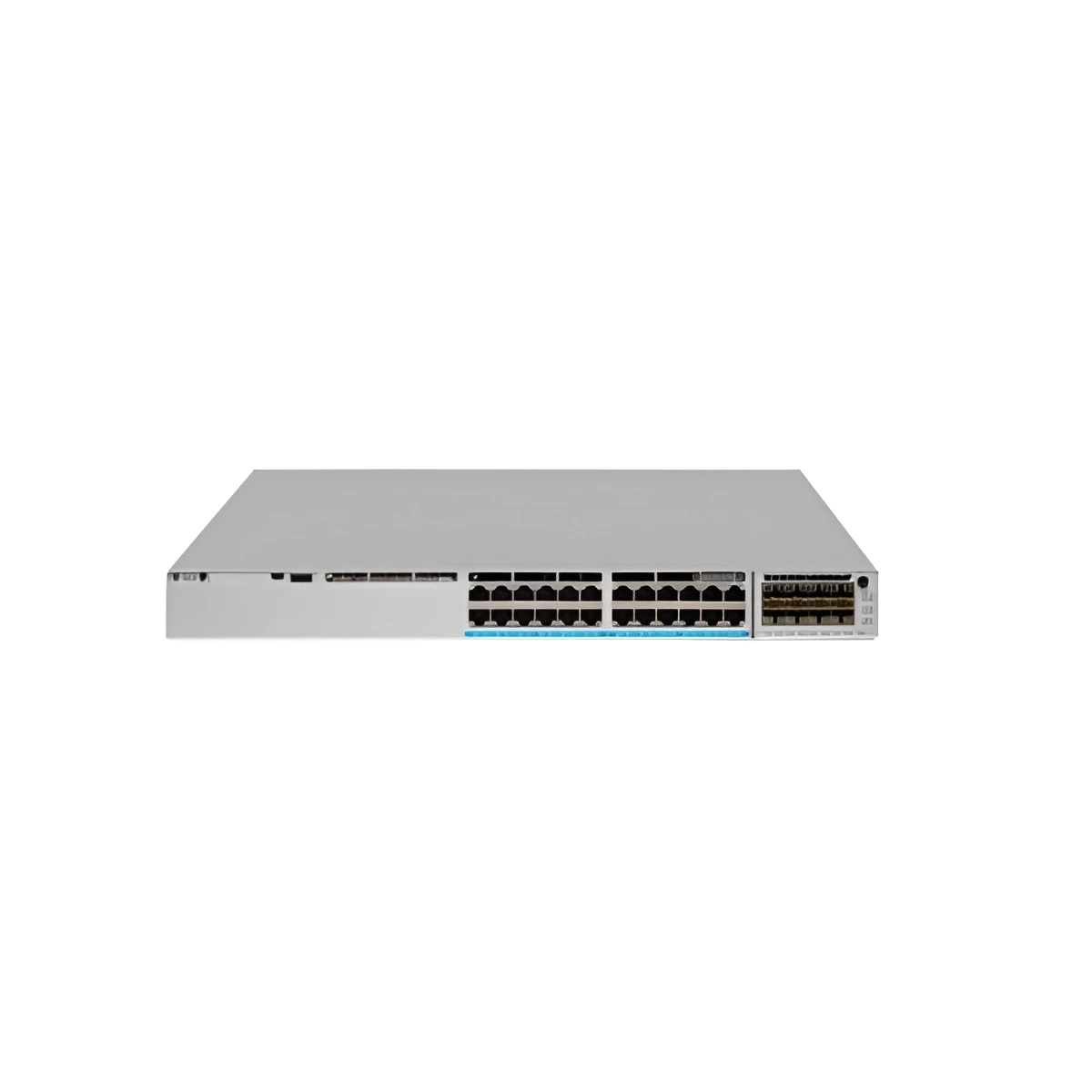

CISCO 9300-24UX-A

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24UX-A is 24-port Multigigabit Ethernet and UPOE, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

C9300-24UX-A Specification
Part NumberC9300-24UX-A
Product DescriptionCatalyst 9300 24-port Multigigabit Ethernet and UPOE,
Network Advantage
Total 10/100/1000 or
Multigigabit copper ports
24 Multigigabit Cisco UPOE
(100 Mbps or 1, 2.5, 5, or 10 Gbps)
Default AC power supply1100W AC
Available PoE power490W
Cisco StackWise-480Yes
Cisco StackPowerYes
Default power supplyPWR-C1-1100WAC-P/2
Switching capacity640 Gbps on 24-port Multigigabit Ethernet model
Stacking bandwidth480 Gbps
Total number of MAC addresses32,000
Total number of IPv4 routes
(ARP plus learned routes)
32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries32,000
IPv6 routing entries16,000
Multicast routing scale8000
QoS scale entries5120
ACL scale entries5120
Packet buffer per SKU32 MB buffer for 24-port Multigigabit
FNF entries128,000 flows on 24-port Multigigabit
DRAM8 GB
Flash16 GB
VLAN IDs4000
Total Switched Virtual Interfaces (SVIs)2000
Jumbo frames9198 bytes
Total routed ports per 9300 Series stack208
Wireless bandwidth per switchUp to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate154.76 Mpps
Dimensions (H x W x D)1.73 x 17.5 x 17.5 Inches
Weight16.33 Pounds
Mean time between failures (hours)299,000
Safety certifications. UL 60950-1
. CAN/CSA-C222.2 No. 60950-1
. EN 60950-1
. IEC 60950-1
. AS/NZS 60950.1
. IEEE 802.3
Electromagnetic emissions certifications. 47 CFR Part 15
. CISPR22 Class A
. EN 300 386 V1.6.1
. EN 55022 Class A
. EN 55032 Class A
. CISPR 32 Class A
. EN61000-3-2
. EN61000-3-3
. ICES-003 Class A
. TCVN 7189 Class A
. V-3 Class A
. CISPR24
. EN 300 386
. EN55024
. TCVN 7317
EnvironmentalReduction of Hazardous Substances (ROHS) 5
