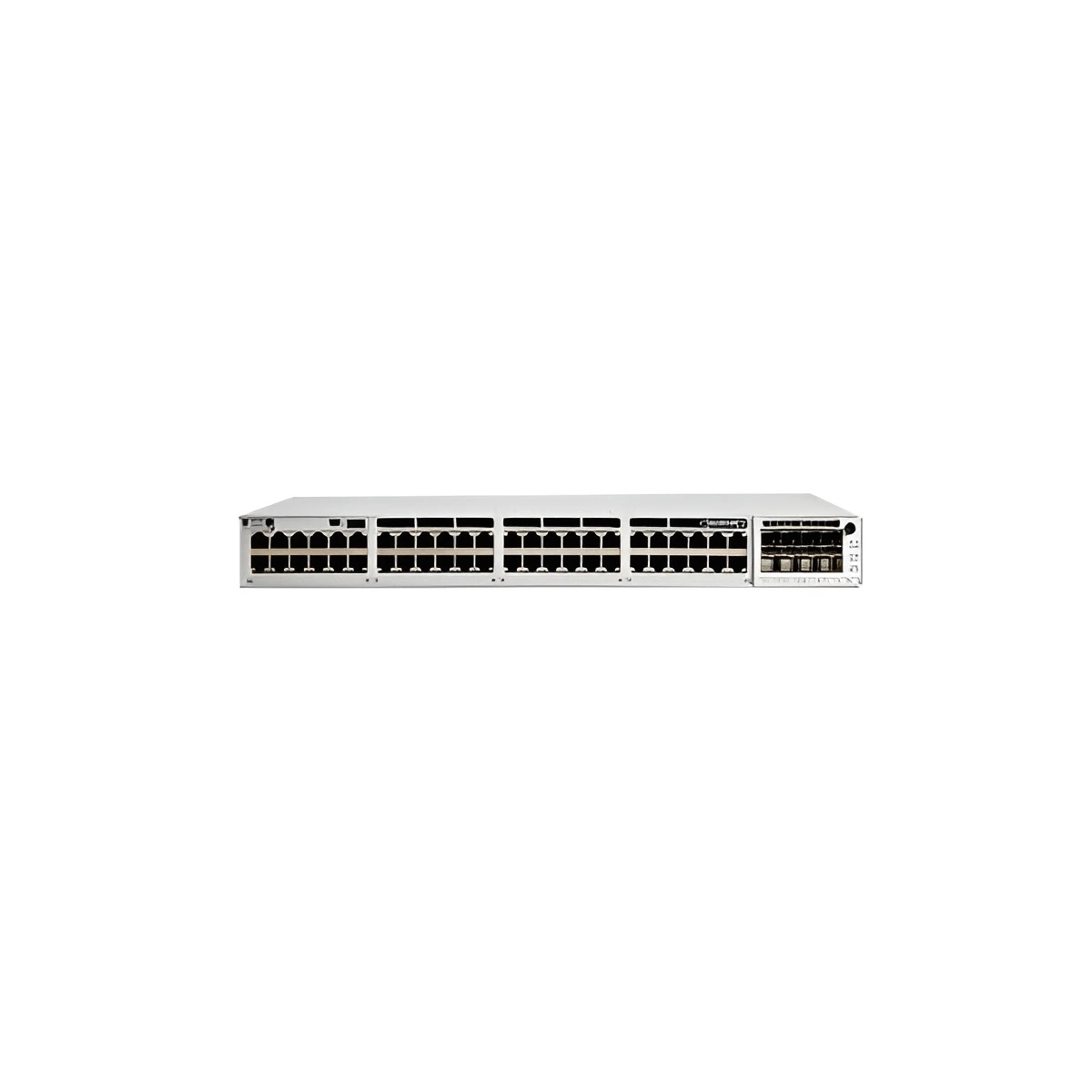

| C9300-48UXM-E Specification |
| General |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 36 x 2.5GBase-T (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 490 W |
| Performance | Switching capacity: 580 Gbps ¦ Stacking bandwidth: 480 Gbps ¦
Forwarding rate: 431.54 Mpps |
| Capacity | IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦
Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦
Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM,
policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | Trunking, full duplex mode, Weighted Random Early Detection (WRED),
Spanning Tree Protocol (STP) support, Access Control List (ACL) support,
Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN),
Management Information Base (MIB), Cisco StackWise-480 technology,
Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication,
16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP),
Source-Specific Multicast (SSM), integrated Wireshark,
VLAN Double Tagging (Q-in-Q), Private VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab,
IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w,
IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Expansion / Connectivity |
| Interfaces | 36 x 2.5Gbit LAN RJ-45 UPOE ¦ 12 x 1/2.5/5/10GBase-T UPOE ¦ 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| MTBF | 202,160 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1,
EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC,
ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS,
AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A,
EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317,
VCCI V-3/2009 Class A |
| Dimensions |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Miscellaneous |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦
Technical support - consulting - 90 days |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | 158 °F |
| Max Storage Temperature | 104 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
