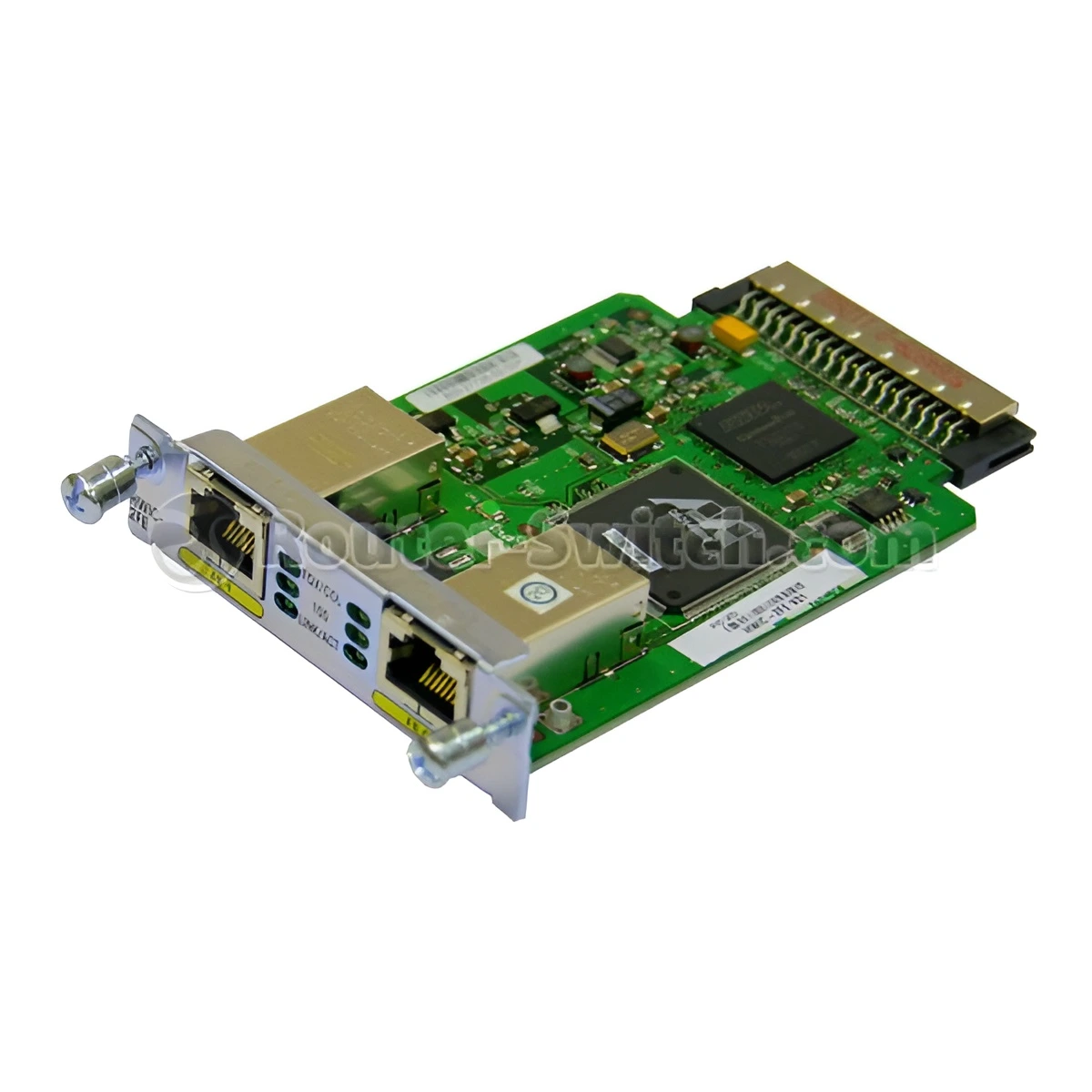

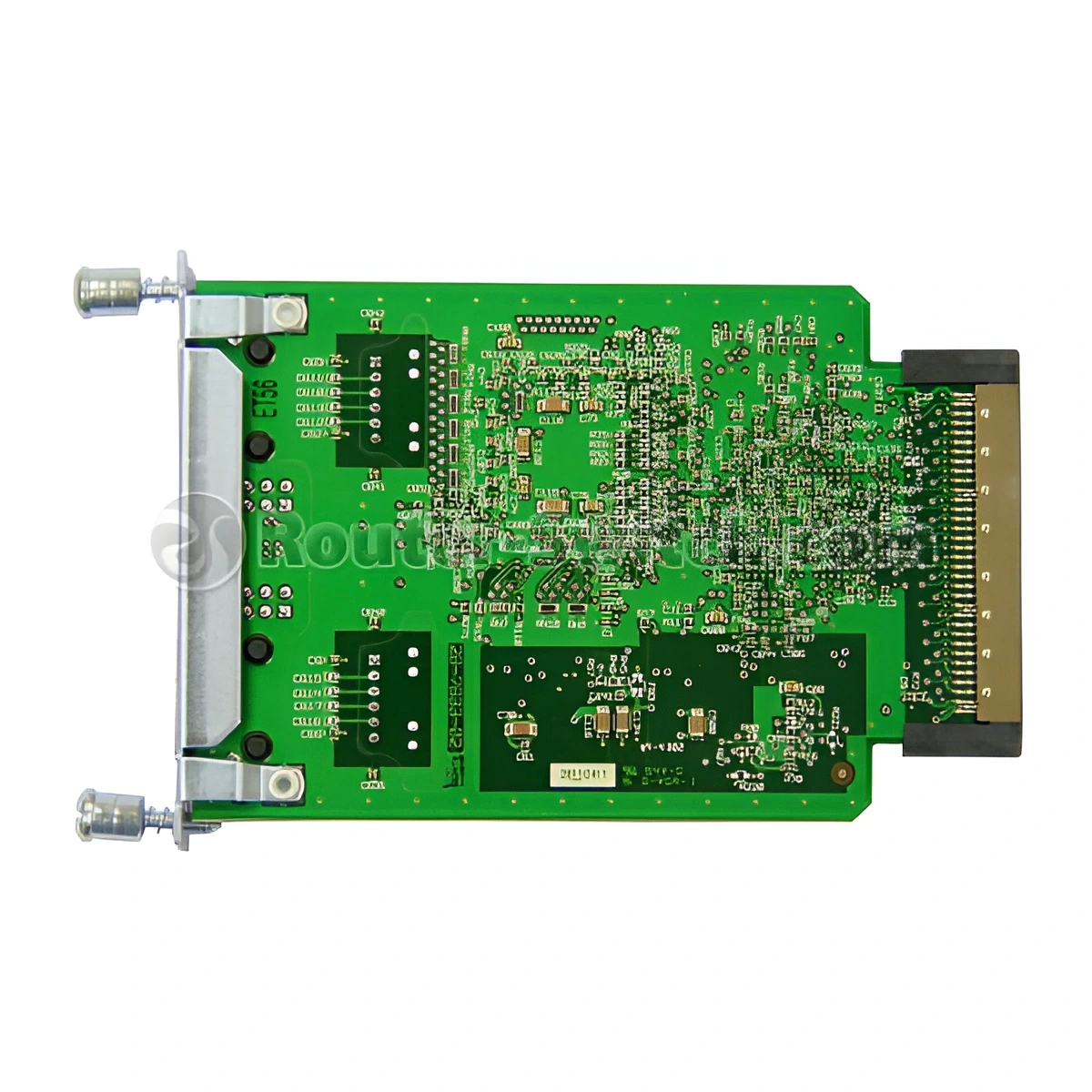

| HWIC-2FE Specifications |
| Manufacturer | Cisco |
| Part Number | HWIC-2FE |
| Device Type | Expansion module |
| Form factor | Plug-in module |
The Fast Ethernet routed ports on the HWICs have the same characteristics and features as the onboard LAN interfaces for
the integrated-services-router platforms. Along with Layer 3 connectivity, such as per-port access control lists (ACLs),
routing, and IP addressing, these HWICs provide functions equivalent to those of onboard Fast Ethernet routed ports. |
| Interfaces/Ports | 2 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X |
| Data Transfer Rate | 10 Mbps Ethernet
100 Mbps Fast Ethernet |
| Ethernet and VLAN | IEEE802.3 with IEEE802.2 Service Advertising Protocol (SAP)
IEEE802.3 with IEEE802.2 and Subnetwork Access Protocol (SNAP)
IEEE 802.1Q VLAN tagging
Autosensing, autonegotiation, and automatic media-dependent interface crossover
(Auto-MDIX)
Unique MAC address (not shared with any other interface on the router),
assigned MAC address to interface, and subinterfaces
Network Management Features
CiscoWorks
Simple Network Management Protocol (SNMP) support
Cisco NetFlow accounting |
| Additional Features | IGMP, HSRP, GLBP, MPLS, GRE, IPv6, IPsec, L2TPv3, DHCP, NAT, GTS,
MGCP, IBM,
PPPoE, Bridging |
| MIBs Supported | ENTITY-MIB, IF-MIB, OLD-CISCO-CHASSIS-MIB, RMON-MIB, ETHERLIKE-MIB,
CISCO-ENT-ASSET-MIB, CISCO-ENTITY-FRU-CONTROL-MIB |
| Agency Approvals | UL 1950, CSA-C22.2 #950, EN60950, TUV GS, IEC 950 |
| Immunity | EN300386, EN55024 and CISPR24, EN50082-1 |
| Emissions | FCC Part 15, Class A ICES-003, Class AEN55022, Class A CISPR22, Class AAS
and NZS 3548, Class AVCCI, Class A EN 300386 EN61000-3-3 EN61000-3-2 |
| Physical Specifications |
| Dimensions (W x D x H) | 3.08 x 4.74 x 0.76 in. |
| Weight | 2-Port: 0.16 lbs or 2.56 oz. |
| Environmental Specifications | Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -4 to 149°F (-20 to 65°C)
Relative humidity: 10 to 90%, noncondensing |
