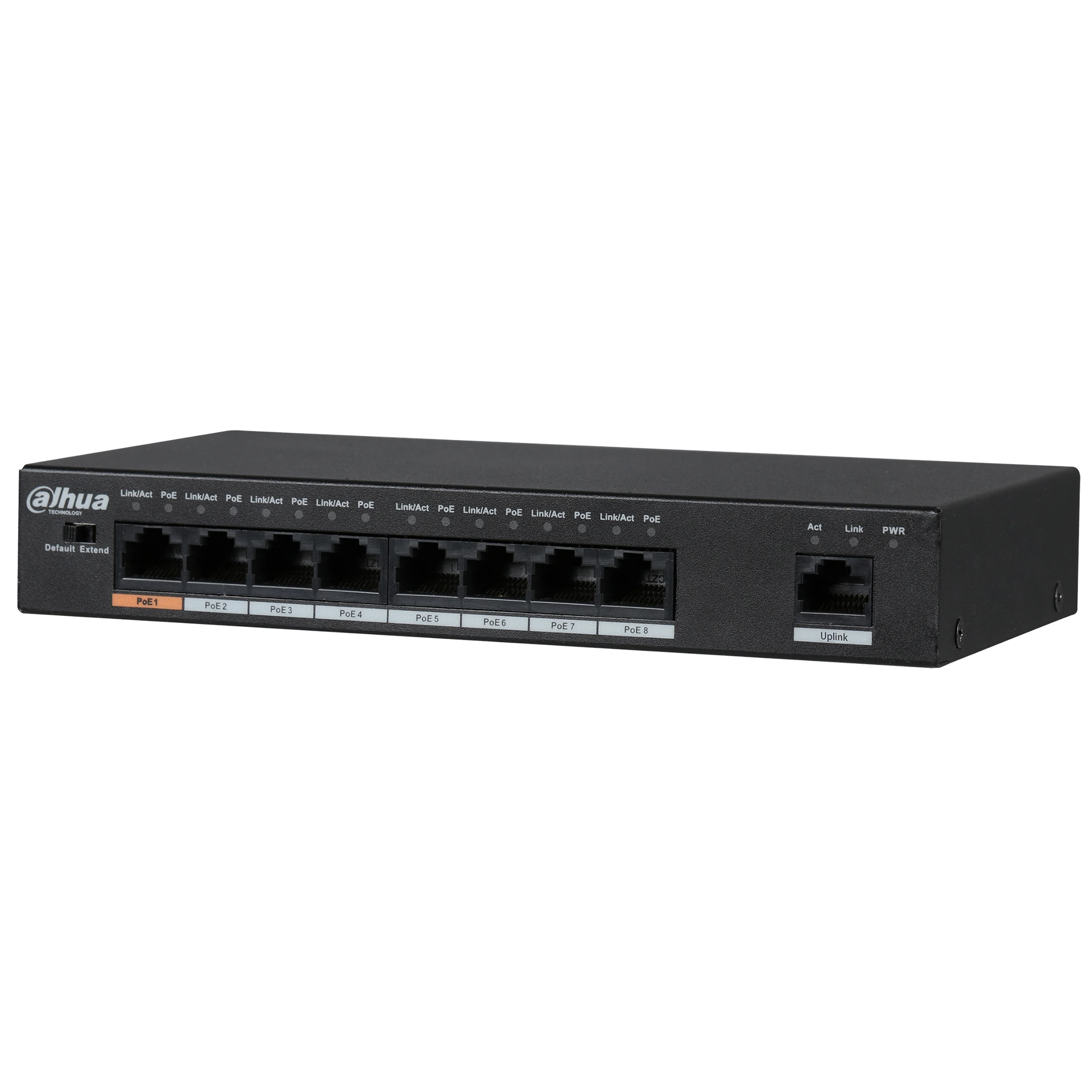

DAHUA DH-PFS3009-8ET-96

PFS3009-8ET-96

8-Port PoE Switch (Unmanaged)

> Layer two commercial switch

> Supports PoE power management

> Supports wall-mount installation

> Supports anti-theft lock hole

> MAC auto learning and aging, MAC address capacity is 2K

> Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards

> RJ45 port supports 10/100 Mbps self-adaptation

> Supports 250 meters long distance PoE transmission

> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supplyTechnical Speci?cation

Model

DH-PFS3009-8ET-96

Ethernet Port

1*10/100 Base-T

8*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1=60W, Port2-8=30W, Total=96W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 4KV

Differential Mode 2KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

490g

Dimension(W×D×H)

190mm×100mm×30mm
