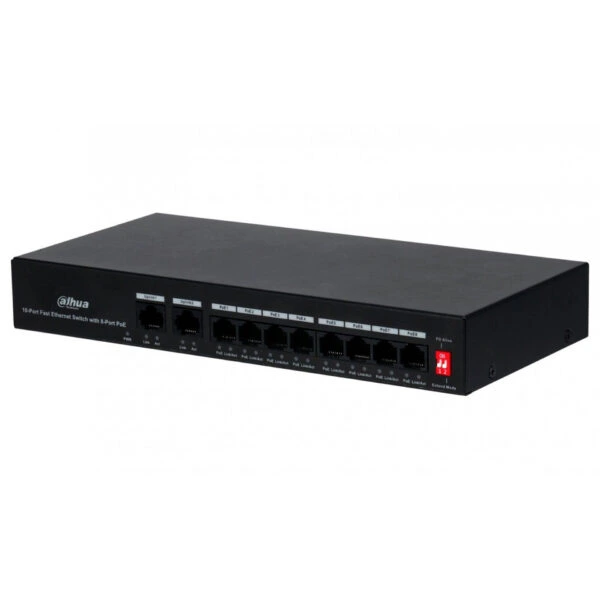

DAHUA DH-PFS3010-8ET-65

PFS3010-8ET-65

10-Port Fast Ethernet Switch with 8-Port PoE

> Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports

> Support 802.3af and 802.3at standards

> Operating Temperature: -10°C to +55°C

> Support 250 m long distance PoE tansmission

> Support PoE watchdog

Hardware

Data Transmission Port

8 PoE ports with 10/100 Mbps Base-TX

2 uplink ports with 10/100Mbps Base-TX

Power Supply

AC100–AC240V

Operating Temperature

-10°C to +55°C (-14°F–131°F)

Operating Humidity

10%–90%

Power Consumption

Idling: 1.0W

Full load: 65W

PoE

PoE Budget

Port1-8 =30W, whole PoE budget =65W

PoE Standard

IEEE802.3af, IEEE802.3at

PoE Pin Assignment

PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)

Performance

Switching Capacity

2.0 Gbps

Packet Forwarding Rate

1.49 Mpps

MAC Table Size

2 K

Jumbo Frame

2048 byte

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

ESD

Air discharge: 8kV

Contact discharge: 6kV

Thunderproof

Common mode: 6kV

Differential mode: 4kV

Net Weight

0.76 kg (1.68 lb)

Gross Weight

1.3 kg (2.87 lb)

Product Dimensions

(W × L × H)

242.5 mm × 122.9 mm × 35.0 mm (9.55? × 4.84? × 1.38?)

Packaging Dimensions

(W × L × H)

Packing box: 303 mm × 262 mm × 72 mm (11.92? ×10.31? × 2.83?)

Protective box: 549 mm × 325 mm × 397 mm (21.61? ×12.80? × 15.63?)

Package

10 devices in one package

Certifications

CE: EN6095
