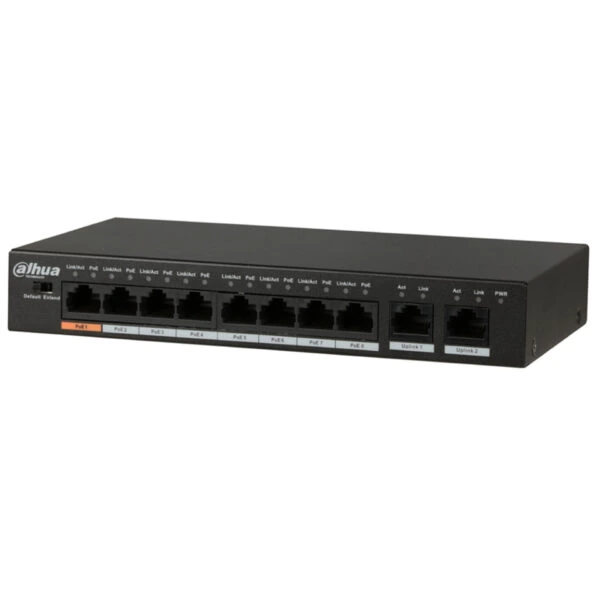

DAHUA DH-PFS3010-8ET-96

PFS3010-8ET-96

8-Port PoE Switch (Unmanaged)

> Layer two commercial switch

> Supports PoE power management

> Supports wall-mount installation

> Supports anti-theft lock hole

> MAC auto learning and aging, MAC address capacity is 16K

> Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards

> RJ45 port supports 10/100 Mbps self-adaptation

> Supports 250 meters long distance PoE transmission

> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

Technical Speci?cation

Model

PFS3010-8ET-96

Ethernet Port

8*10/100Mbps PoE ports

2*10/100/1000Mbps ports

PoE Power Consumption

Port1=60W, Port2-8=30W, Total=96W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

5.6Gbps

Packet Forwarding Rate

4.17Mpps

Packet Buffer Memory

4Mb

MAC Table Size

16K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

490g

Dimension(W×D×H)

190mm×100mm×30mm
