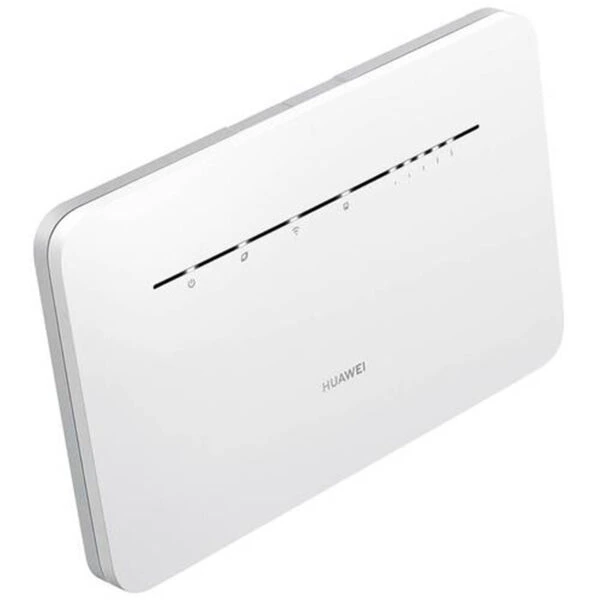

HUAWEI B535-232-WHT

The 4G Wi-Fi Provider

No need for the carrier to install or configure a cable in your home. With the portable HUAWEI 4G Router 3 Pro, just insert a regular 4G SIM card to provide the whole house or meeting room with fixed wireless broadband services.

High Speed, Strong Signal

The dual-core Balong chipset in the HUAWEI 4G Router 3 Pro delivers a maximum download rate of 300 Mbit/s. And, with the two built-in high-gain 4G antennas and two external antennas interfaces, the signal stability and strength of coverage area are vastly improved.

Intelligent Dual Band Wi-Fi

The HUAWEI 4G Router 3 Pro supports dual Wi-Fi bands of 2.4 GHz and 5 GHz and also combines them into one visible signal. You will have a smooth and stable Wi-Fi experience without having to manually select the best signal.

4 Gigabit Ethernet Ports

With 4 Gigabit Ethernet ports and dual-band 1167 M Wi-Fi, HUAWEI 4G Router 3 Pro is suitable for more than 100 M broadband. The Wi-Fi performance is 4 times higher than the previous generation.

ANTENNA – Two 4G antenna extension ports, allowing users to purchase antennas

NETWORK PORT –1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)

KEY – Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS

LED INDICATOR – 4G / Wi-Fi / Lan / Power / Signal Strength indicators

SOFTWARE FUNCTIONS – APP: HUAWEI SmartHome APP

HUAWEI HiLink Smart Home: Support HUAWEI HiLink device password-free access, modify Wi-Fi name / password auto sync

More Functions: Mobile network (4G) access, Ethernet access, band steering, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel / VPN penetration, IP penetration, IPv6 & IPv6 / IPv4 dual stack, multi-APN, WeBUI, administrator maintenance, HOTA, etc

PACKING LIST – HUAWEI 4G Router 3 Pro: 1 (standard configuration)

• Power Adapter: 1 (standard configuration)
• Socket: 1 (standard configuration)
• Quick Start: 1 (standard configuration)
• Processor Specs – Balong chip, Gigahome dual-band Wi-Fi chip

• Tested ambient temperature- -20°C to 70°C

• Wireless 2.4 GHz standarts- 802.11b/g/n

• Wireless 5 GHz transmission speed – up to 1167 Mbps

• Wireless 5 GHz standarts- 802.11a/n/ac

• 10/100/1000 Ethernet ports – 4

• Power Method – AC: 100V – 240V 50Hz / 60Hz, DC: 12V / 1A

• Number of DC inputs – 1

• Max Power Consumption – 12 W

• Number of SIM slots – 1

• LTE Category – 3GPP Release 11, LTE CAT7 (300Mbps / 100Mbps)

• LTE FDD Bands – B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38

• 3G bands – B1 / B8
