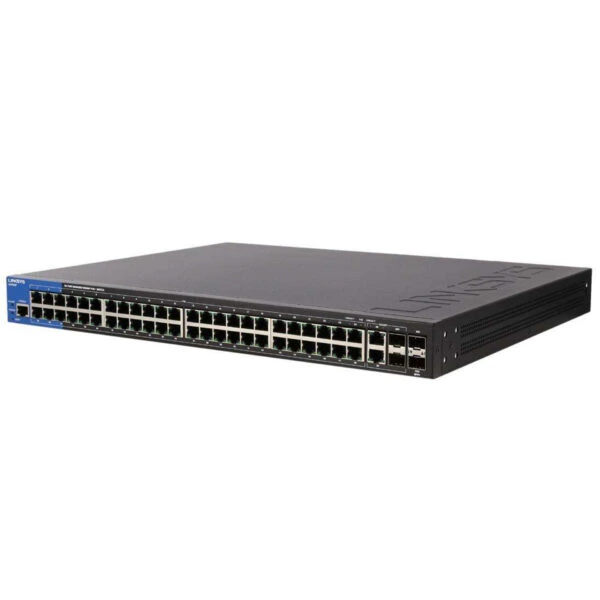

LINKSYS BUSINESS LGS552 48-PORT GIGABIT MANAGED SWITCH

Linksys Business LGS552 48-Port Gigabit Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports + 2x 10G SFP+ Ports

Two combo mini-GBIC (SFP) ports

Two 10-Gigabit uplink Ethernet SFP+ ports

Layer 3 static routing

IPv6 Support

Advanced QoS

Advanced Security

Meets EEE (Energy Efficient Ethernet) 802.3az standard

Description

FEATURES

ADVANCED NETWORK MANAGEMENT CAPABILITIES

Advanced features include Layer 2 Switching and Layer 3 Static Routing between different VLAN communications without any performance degradation for a more efficient network. Linksys 500 Series Switches manage internal routing with your router and dedicate fixed paths to external traffic and security

ADVANCED TRAFFIC-HANDLING INTELLIGENCE

Layer 2 MAC and Layer 3 IP Flow-based Policies and Rate Limiting Control prioritize traffic, offering an ideal solution to manage and control real-time, high bandwidth, voice and video traffic without slowing down your other business applications.

ADVANCED NETWORK SECURITY FEATURES

Extensive Access Control Lists (ACLs) control and block portions of the network from unauthorized users and external network attacks, while DHCP Snooping, IP and MAC-Port Binding functions help ensure network integrity. IEEE 802.1X Port Security strictly limits access to specific segments of your network, and Port Authentication and MAC-based Port Security require clients to authenticate themselves before any data passes.

FIBER-OPTIC NETWORK EXPANSION SUPPORT

Additional Gigabit SFP+ Fiber-Optic port expansions provide a powerful combination of business scalability for any server farm and data center environment, and enhance high bandwidth demands while providing redundancy for fast and easy network growth. Mini Gigabit Interface Converter (mini-GIBC) expansion ports offer the option to add fiber-optic or Gigabit Ethernet uplink connectivity to these managed switches.

TECHNICAL SPECS

Model Name:

LGS552

Network Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3ae

IEEE 802.3x

IEEE 802.3ad

IEEE 802.3az

IEEE 802.1D

IEEE 802.1w

IEEE 802.1Q/p

IEEE 802.1X

Memory:

128 MB

LEDs:

System (blue/yellow), Link/Act(green)

System Power Consumption without PoE+:

110V: 19.4W

220V: 19.71W

Forwarding Rate:

104.16 Mbps

Switching Capacity:

140 Gbps

MAC Address Table Size:

16K

Jumbo Frame (FE, GE):

9K

Dimensions (LxWxH):

440 x 350 x 44.45 mm (17.32 x 13.78 x 1.75 in.)

Weight:

4.18 kg (9.22 lbs.)

Power Input:

100–240V;

50–60 Hz

(1.4A max)

Operating Temperature:

0 to 50°C (32 to 122°F)

Storage Temperature:

-20 to 70°C (-4 to 158°F)

Operating Humidity:

10 to 90% RH

Storage Humidity:

10 to 90% RH (non-condensing)

Spanning Tree:

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

Link Aggregation:

IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

VLAN:

Port-based and IEEE 802.1Q tag-based VLANs

Auto Voice VLAN:

VLAN voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

IGMP Snooping:

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requesters; supports 256 multicast groups

HOL Blocking Prevention:

Head-of-line (HOL) blocking prevention

Port Mirroring:

Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

Security Features:

IEEE 802.1X radius authentication

DHCP snooping

IP-MAC-Port binding

IP source guard

ARP inspection

STP root guard

STP BPDU guard

DHCP relay

Port security supports limited dynamic lock and locked MAC address,

Management access control

Storm Control:

Broadcast, unknown-unicast, and multicast

Access Control:

Support up to 512 rules for enhanced security and/or advanced QoS policy: allow, deny, or rate limit based on Layer1 to 4 protocol fields at packet header level with MAC ACL and IP ACL

RMON:

Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

Management Interface:

HTTP

HTTPS

Other Management:

Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

SNMP:

Version 1

Version 2c

QoS – Class of Service:

Port-based, IEEE 802.1p priority-based, IPv4/v6 IP DSCP-based

Combo Ports (RJ45 + SFP):

2 combo on ports g49, g50

Copper FE/GE Ports (RJ45):

g01–g25, g26–g50

Green Power Mode:

EEE+, Short Reach + Energy Detect

QoS – Priority Levels:

4 hardware queues

QoS – Scheduling:

Priority queuing and weighted round robin (WRR)

10Gb Ports (SFP+):

XG1, XG2

Total System Ports:

52GE
