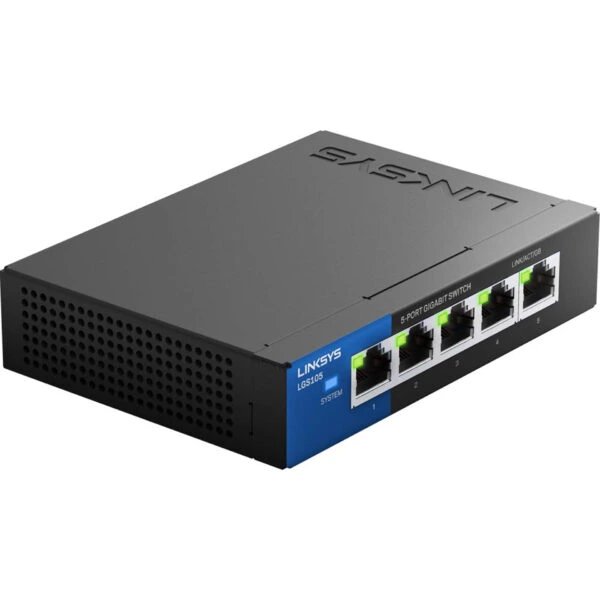

LINKSYS LGS105 5-PORT BUSINESS DESKTOP GIGABIT SWITCH

Linksys LGS105 5-Port Business Desktop Gigabit Switch

Wired connection speed up to 1000 Mbps

5 Gigabit Ethernet auto-sensing ports

Easy plug & play connection

QoS

Meets EEE (Energy Efficient Ethernet) 802.3az standard

Description

FEATURES

GIGABIT PERFORMANCE

Minimize transfer times and interference while streaming high-bandwidth files to connected devices.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device

POWER-SAVING FEATURES

The auto power-down feature disables unused ports, smart power is ideal for short cable runs

TECHNICAL SPECS

Model Name:

LGS105

Network Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3az

Ports:

5 Gigabit Ethernet (10/100/1000) Ports

LEDs:

Link and activity indicators

Performance:

Full line rate and forwarding rate of 64B frame at:

1.488Mpps for 1000M port

0.1488Mpps for 100M port

0.01488Mpps for 10M port

MAC Address Table Size:

2,000 entries

Bandwidth:

10 Gbps (non-blocking)

Fans:

None

Minimum System Requirements:

Connected devices need Ethernet connectivity and Ethernet cables.

Dimensions (LxWxH):

120 x 88 x 26 mm

Weight:

0.252 kg

Power:

110-240V AC, 50/60Hz, 5V DC, 1.0A

Power Consumption:

0.42W/2.01W

Power Consumption:

0.73W / 2.22W

Power Input:

12V 0.5A

Power Saving:

Cable connected detection, sleep mode

Power Supply:

External

Operating Temperature:

0–50°C

Storage Temperature:

-40–70°C

Operating Humidity:

10–90% (non-condensing)

Storage Humidity:

10–90% (non-condensing)

Mounting:

Wall

Regulatory Compliance:

FCC Class B, CE

Warranty and Support:

5 Year Warranty
