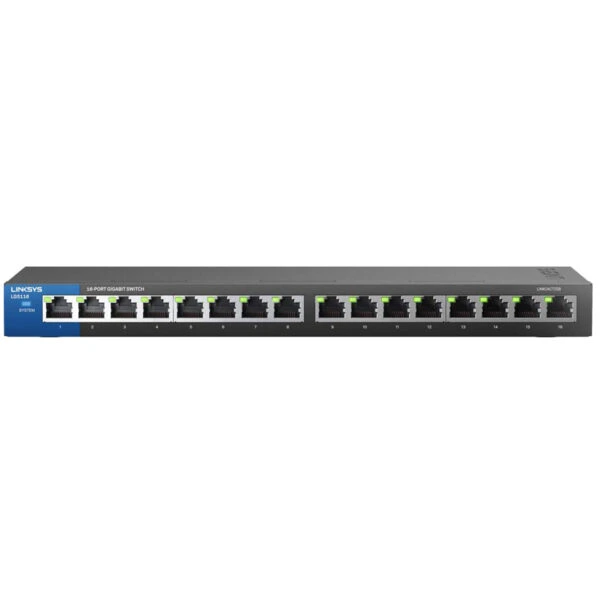

LINKSYS LGS116 16-PORT BUSINESS DESKTOP GIGABIT SWITCH

Linksys LGS116 16-Port Business Desktop Gigabit Switch

Linksys LGS116 16-Port Business Desktop Gigabit Switch, Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.

Wired connection speed up to 1000 Mbps

16 Gigabit Ethernet auto-sensing ports

Easy plug & play connection

QoS

Meets EEE (Energy Efficient Ethernet) 802.3az standard

Description

FEATURES

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

TECHNICAL SPECS

Model Name:

LGS116

Network Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3az

Ports:

16 Gigabit Ethernet (10/100/1000) Ports

LEDs:

Link, speed, and activity indicators

Performance:

Full line rate and forwarding rate of 64B frame at:

1.488Mpps for 1000M port

0.1488Mpps for 100M port

0.01488Mpps for 10M port

MAC Address Table Size:

8K

Bandwidth:

32 Gbps (non-blocking)

Fans:

None

Minimum System Requirements:

Connected devices need Ethernet connectivity and Ethernet cables

Dimensions (LxWxH):

288 x 102 x 26 mm

Weight:

0.703 kg

Power:

12 VDC, 1 A

Power Consumption:

2.36W/8.01W

Power Consumption:

2.66 W / 9.32 W

Power Saving:

Cable connected detection, sleep mode

Power Supply:

External

Operating Temperature:

0–50°C

Storage Temperature:

-40–70°C

Operating Humidity:

10–90% (non-condensing)

Storage Humidity:

10–90% (non-condensing)

Quality Of Service:

802.1p and DSCP

Regulatory Compliance:

FCC Class B, CE

Warranty and Support:

5 Year Warranty
