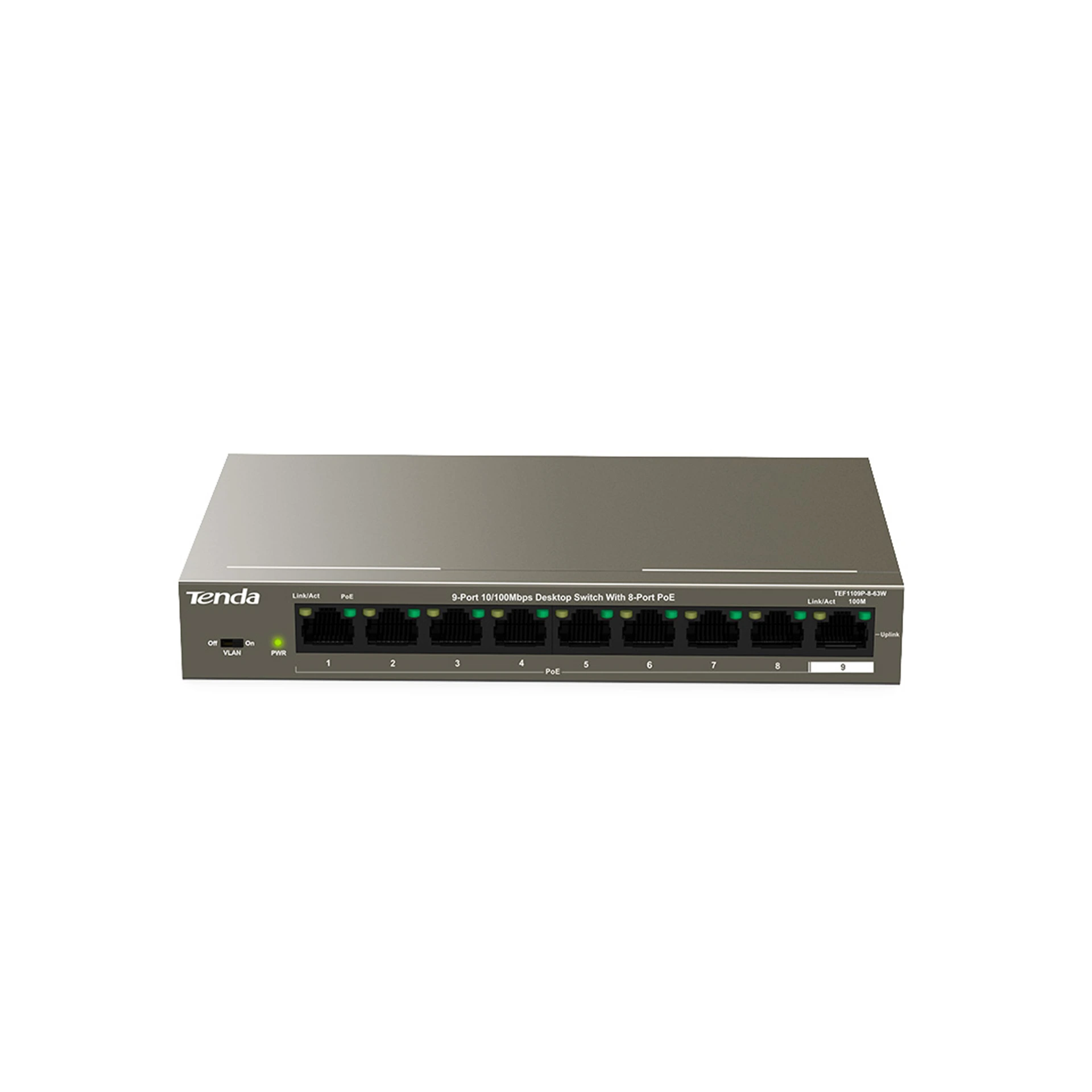

TENDA TEF1109P-8-63W

Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.

SPECIFICATIONS

Hardware

Network standards                                       IEEE 802.3?,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE

802.3at

LED Indicator                                                9 * Link/Ack LED indicators,1 * Power LED indicator

Interfaces                                                        8*10/100 Base-TX Ethernet ports (Data/Power),1*10/100 Base-TX

Ethernet ports (Data)

Transmission media                                     Recommended: CAT5/5e UTP or better

Fan quantity                                                   N/A

Dimension                                                       177.5mmx104.0mmx26.0mm

Level of protection                                         Lightning protection for ports: 6KV,Lightning protection for power:

4KV,ESD: Air discharge: ±10kV,Contact discharge: ±8kV

Forwarding mode                                           Store-and-forward

Switch capacity                                               1.8 Gbit/s

Packet forwarding rate                                  1.34Mpps

Buffer                                                                 1.25Mb

MAC address table                                           4K

Jombo frame                                                     N/A

PoE budget                                                         Single port: AF: 15.4W, AT: 30W,Whole device: 58W

Power consumption                                          /

Input voltage                                                      100-240V AC 50/60Hz,51V /1.25A DC(Power Adapter )

Mounting                                                            Desktop mounting: support,Wall mounting: support,Rack

mounting:non-support

Environment                                                      Operating Temperature: 0?~45?,Storage Temperature:

-40?~70?,Operating Humidity: 10%~90% non-condensing,Storage Humidity: 5%~90% non-condensing

Certification                                                         FCC,CE RoHS

Software

Funtions                                                               Standard: the switch functions as a common unmanaged switch and

all the ports of the switch can communicate with each other.

VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
