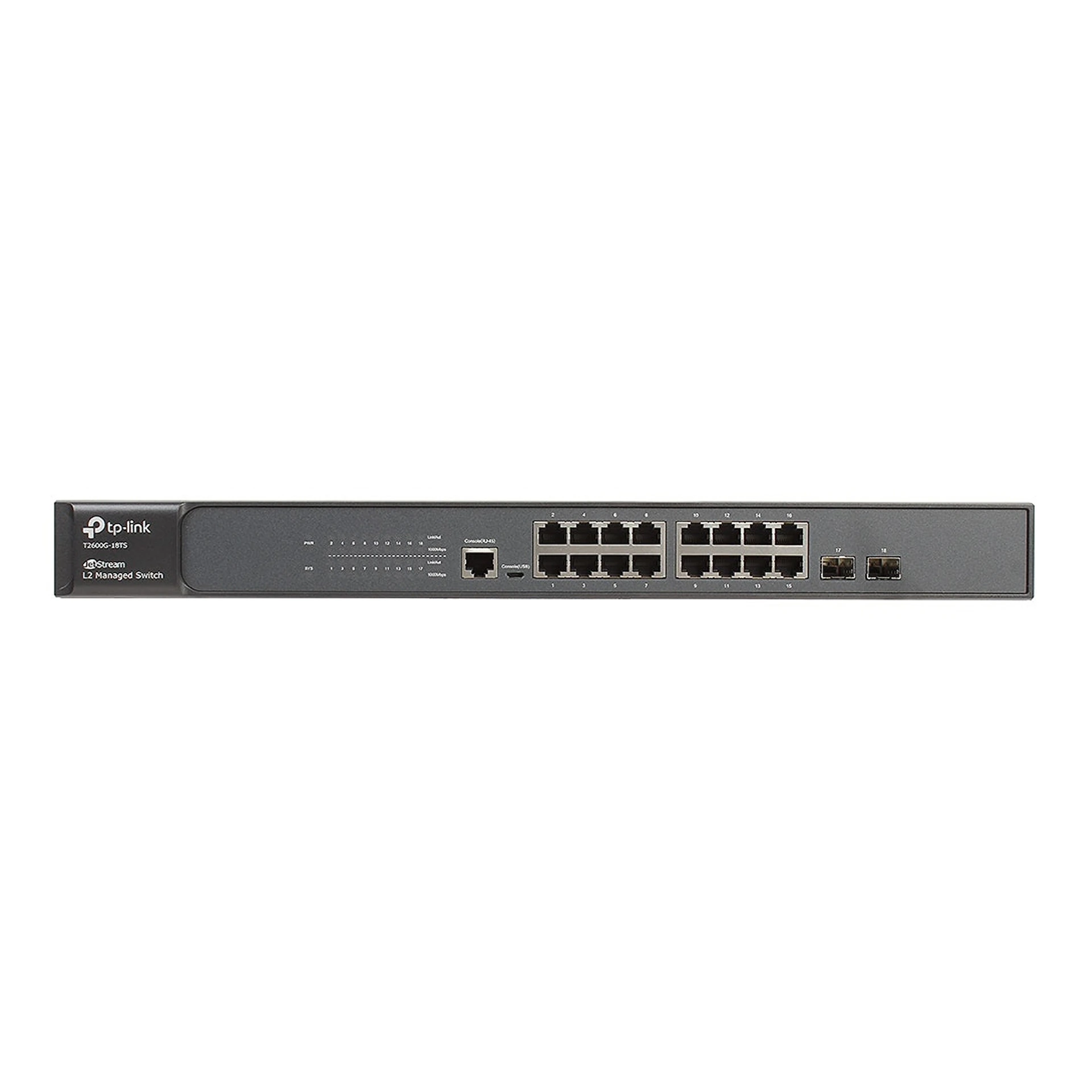

TP LINK T2600G-18TS (TL-SG3216)

JetStream™ 16-port Pure-Gigabit L2 Managed Switch, 16 10/100/1000Mbps RJ45 ports including 2 combo SFP slots, Port/Tag/MAC/Voice/Protocol-based VLAN, GVRP, STP/RSTP/MSTP, IGMP V1/V2/V3 Snooping, L2/L3/L4 Traffic Classification/Priority Management, Rate Limiting, 802.1x, IEEE 802.3ad, L2/3/4 ACL, Port Mirroring, SSL, SSH, CLI, SNMP, RMON, 1U 19-inch rack-mountable steel case

FUNCTIONALITY OF THE HARDWARE

Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.12, IEEE 802.12, IEEE 802.12, p

Interface 16 10/100 / 1000Mbps RJ45 Ports (Auto Negotiation / Auto MDI / MDIX)

2 100/1000 Mbps SFP Slots

1 RJ45 Console Port

1 Micro-USB Console Port

Network media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX / 1000Base-T: UTP category 5, 5th or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

Fan Number 0

Physical Security Lock Yes

Output power 100 ~ 240VAC, 50 / 60Hz

Dimensions (W x D x H) 17.3 * 8.7 * 1.7 in. (440 * 220 * 44 mm)

Montage Rack Mountable

Max Power Consumption 11.47W (220V / 50Hz)

Max Heat Dissipation 39.14 BTU / h

PERFORMANCE

Switching capacity 36Gbps

Packet Forwarding Rate 26.78 Mpps

MAC Address Table 8k

Jumbo Frame 9216 Bytes

FUNCTIONALITY OF THE SOFTWARE

Quality of the Service (QoS) Support 802.1p CoS / DSCP priority

Support 8 priority queues

Queue scheduling: SP, WRR, SP + WRR

Port / Flow-based Rate Limiting

Voice VLAN

L2 and L2 + Features Static Routing

DHCP Relay

IGMP Snooping V1 / V2 / V3

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

STP / RSTP / MSTP

BPDU Filtering / Guard

TC / Root Protect

Loopback detection

802.3x Flow Control

L2PT

VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

802.1Q / MAC / Protocol-based VLAN

GARP / GVRP

Access Control List L2 ~ L4 package filtering based on source and destination MAC address, IP address, TCP / UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based ACL

Safety IP MAC Port Binding

AAA

802.1x and Radius Authentication

DoS Defend

Dynamic ARP Inspection (DAI)

SSH v1 / v2

SSL v3 / TLSv1

Port Security

Broadcast / Multicast / Unknown-unicast Storm Control

IPv6 Dual IPv4 / IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6 / UDPv6

IPv6 ACL

DHCPv6 Snooping

IPv6 Interface

IPv6 Applications DHCPv6 Client

Ping6

Tracert6

Telnet (v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http / Https

IPv6 TFTP

IPv6 ACL

IPv6 Interface

IPv6 Routing

DHCPv6 Snooping

Management Web-based GUI and CLI management

SNMP v1 / v2c / v3, compatible with public MIBs and TP-Link private MIBs

RMON (1, 2, 3, 9 groups)

PPPoE Circuit ID

DHCP Relay

DHCP Server

DHCP / BOOTP Client, DHCP Snooping, DHCP Option82

Dual Image

CPU Monitoring

Port Mirroring

DDM

Time Setting: SNTP

Firmware Upgrade: TFTP & Web

System Diagnosis: VCT

SYSLOG & Public MIBS

Password Recovery

OTHERS

Certification CE, FCC, RoHS

Package Content Switch

Power cord

Quick Installation Guide

Resource CD

Rackmount Kit

Rubber Feet

System Requirements Microsoft® Windows® XP, Vista ™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux.

Surroundings Operating Temperature: 0 ? ~ 40 ? (32 ? ~ 104 ?);

Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing
