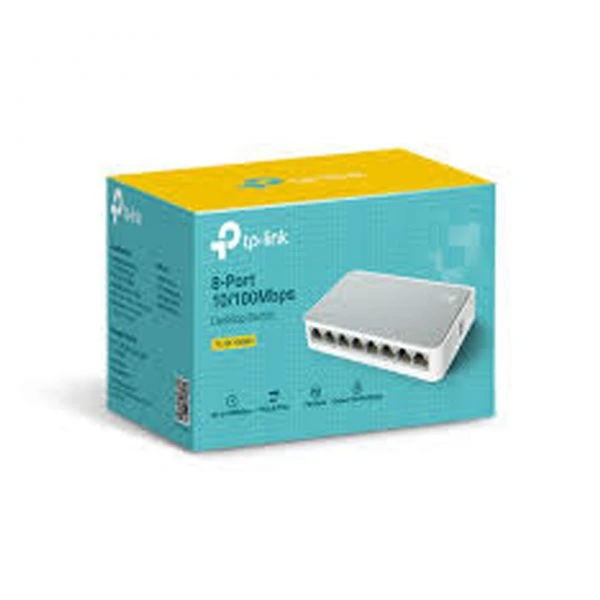

TP LINK TL-SF1008D

8-port 10/100M mini Desktop Switch, 8 10/100M RJ45 ports, Plastic case

8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop design

Plug and play, no configuration required

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

External Power Supply 100-240VAC, 50/60Hz

(Output: 9VDC / 0.6A)

Buffer Size 768Kb

Data Rates 10/100Mbps at Half Duplex ;

20/200Mbps at Full Duplex

LED Indicator Power

Port network activity (on the network module)

Dimensions ( W x D x H ) 5.3 × 3.1 × 0.9 in.

(135 × 79 × 23mm)

Max Power Consumption 2W

Max Heat Dissipation 7.0 BTU/h

SOFTWARE FEATURES

Transfer Method Store and Forward

Advanced Functions Green Technology

802.3X Flow Control, Back Pressure

OTHERS

Certification FCC, RoHS

Package Contents 8-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Environment Operating Temperature: 0°C~40°C (32°F~104°F);

Storage Temperature: -40°C~70°C (-40°F~158°F);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
