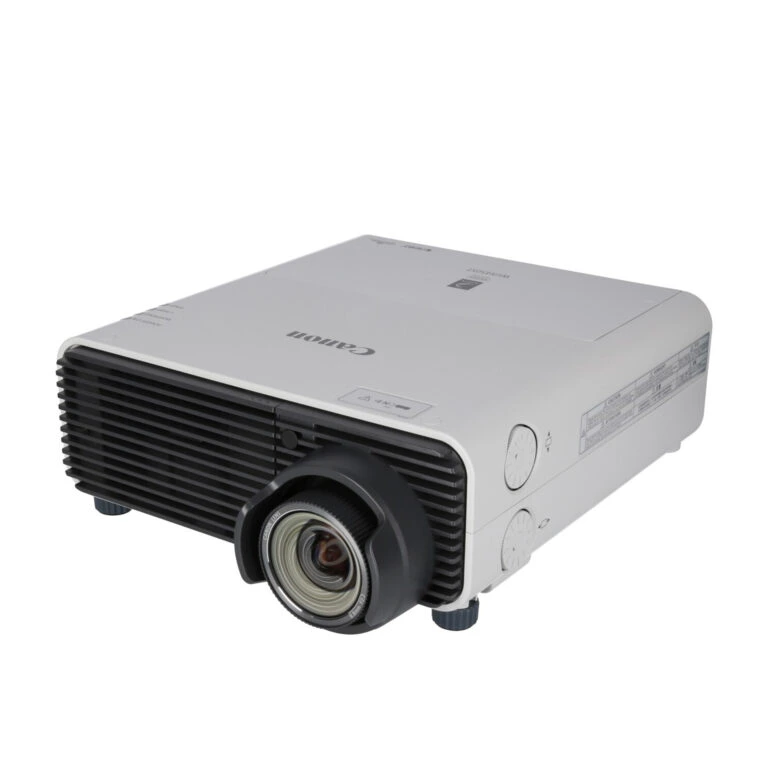

CANON Xeed WUX450ST USB / HDMI / LAN / Wifi / Short Throw

The XEED WUX450ST offers multiple industry-standard interfaces including HDMI, DVI-I, USB, RS-232C, and an RJ-45 network port. In addition, it also supports Wi-Fi which can be used to enhance the WUX450ST’s Network Multi-Projection (NMPJ) functionality which allows a projector(s) to receive display information from a PC(s) through a network. This model is a Crestron Connected device, compatible with AMX Device Discovery, and also supports PJLink which makes it possible to control and monitor the projector over the network.

Network Management including Crestron Connectivity and AMX Device Discovery

Compact design, 4-point keystone correction, and manual lens shift

Built-in Edge Blending

Versatile connectivity including HDMI and DVI

Short throw capability with 0.56:1 Throw Ratio

Genuine Canon Lens with 0-75% Vertical Lens Shift for flexible installation

SPECIFICATIONS

Brightness:                           4,500 ANSI Lumens / 3,460 Lumens (Eco)

Resolution:                           1920×1200

Aspect Ratio:                        16:10 (WUXGA)

Contrast:                               2,000:1 (full on/off)

Display Type:                      2 cm LCoS x 3

Color Processing:               8-bit

Input Lag:                            19ms (min)

Video Modes:                      720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i

Data Modes:                        MAX 1920×1200

Lamp Type:                         260W NSH bulb

Lamp Life:                           3,000 hours / 5,000 hours (Eco)

Lamp Model:                      RS-LP08 Buy Replacement Lamp

Included Lens:                   Fixed focal length , manual focus

Optional Lenses:               No

Lens Shift:                          Horizontal +/-10% & Vertical +75%

Throw Distance:              0.4 m – 3.6 m Calculate Throw Distance

Image Size:                       77 cm – 764 cm

Throw Ratio:0.56:          1 (D:W)

Projector Placement:      For a 254 cm diagonal screen, place the projector lens 1.2 m from the screen.

Digital Zoom:Yes

Digital Keystone:              Horizontal & Vertical

Projector Size:                  14 cm x 34 cm x 41 cm (HxWxD)

Weight:                              6.3 kg

Audible Noise:                  37 dB / 30 dB (Eco)

Internal Speakers:           5.0 Watts Mono

Power:                                365 Watts 100V – 240V
