Panasonic KXNT 700

High Definition Voice Quality

Full Duplex Acoustic Echo-Canceller

Simple Video Conferencing System

Mic Noise Cut

Speech Speed Conversion

Conference Recording with SD Memory card

3-Party Conferencing

Easy to Carry & Setup

Relationship with Panasonic IP PBX (KX-TDE, NCP series)

Analogue Line Interface

I/F connector – RJ11 x 1

Dialling – Dial Pulse (DP) Tone (DTMF)

Ethernet Interface

I/F connector – RJ45 x 1

Transceiver type – 10/100Base-T, Auto MDI/MDX

General purpose Interface

USB Interface – USB2.0 (Low/Full speed) Device Function x 1, USB Audio

SD slot – 1

Audio Line In/Out – ø3.5mm mini-jack x 1

Microphone Interface

I/F connector – RJ9 x 2

Interface – 4 Wire (Power, GND, MIC-Mute, MIC-Signal-Input)

Audio Interface

Loudspeaker – 1

Speaker volume – 8 steps

Range of frequency – 300Hz – 7000Hz

Stereo/mono – mono

Internal microphone – 2 element microphone arrays x 4 corners

Microphone coverage – Radius of 3m

Range of frequency – 300Hz – 7000Hz

S/N Ratio – Above 58dB at 1kHz

Display

LCD Resolution – 103 x 48 Full dot

LCD Back light – Yes (white)

LCD contrast – Yes (6-level)

Status Indicator

LED – 4 (dual-colored LED red & blue)

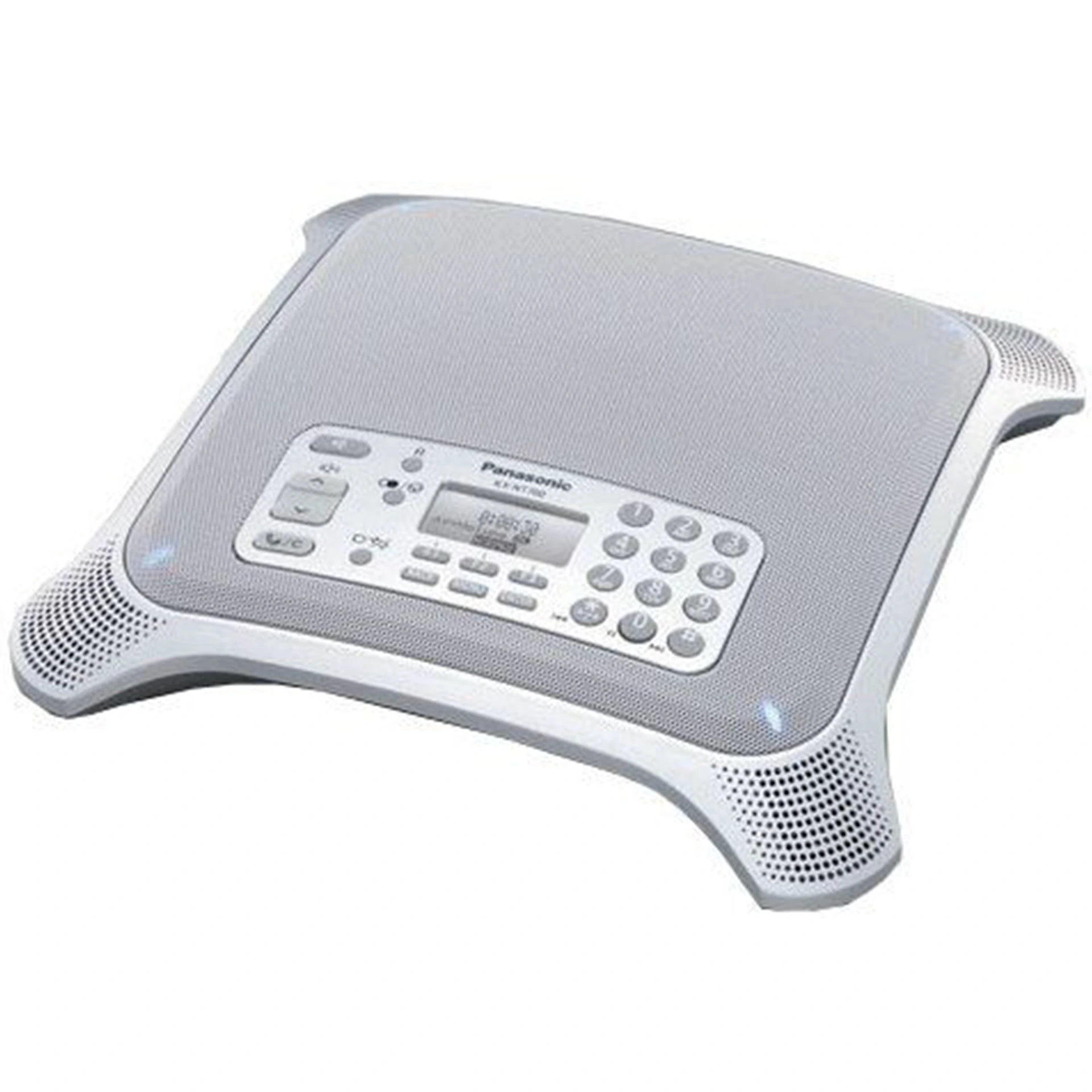

The KX-NT700 is an advanced conferencing solution that can connect over IP networks or even the public switched telephone network. This Multi-party IP Conferencing Phone supports Hi-Definition sound and makes communications as simple as a face-to-face meetings. It even connects with standard office telephone systems for seamless inter-working. KX-NT700, a valuable asset to help you collaborate across your board rooms, or around the globe.

High Definition Voice Quality

Using a wideband speech codec (G.722[16KHz sampling]), audio during VoIP is transmitted in high quality, making conferences seem “face-to-face”.

Full Duplex Acoustic Echo-Canceller

Owing to the latest echo cancelling technology, conversations are clearer than on analogue conference calls.

Simple Video Conferencing System

Conference Phone Manager bundled software supports simple video conferencing and peer to peer connection. Furthermore, you can also simultaneously use other functions on your PC such as application sharing, and whiteboard. This lets all of you refer to the same documents or information on both ends of the line, making your enhanced video conference call more effective.

Mic Noise Cut

By cancelling out ambient noise such as the drone of LCD projector fan, conversations are clear and conferences can proceed smoothly.

Speech Speed Conversion

Other parties are slowed to a loud and clear speaking speed by expanding audible segments and compressing inaudible segments without altering the overall duration of spoken tracts during conversation.

Conference Recording with SD Memory card

Calls can be recorded on SD card. PCM (pulse code modulation) recording is used, making playback on PC simple and easy. Recording time depends on SD card capacity. (A 2GB card allows about 67 hours of recording.)

3-Party Conferencing

KX-NT700 can simultaneously establish 1 IP channel and 1 analogue connection. An IP connection can simultaneously connect to 2 channels for 3-party conferencing.

Easy to Carry & Setup

The KX-NT700 is light and simple to set up.

Relationship with Panasonic IP PBX (KX-TDE, NCP series)

The KX-NT700 operates as SIP extension of PBX and analogue extension.
