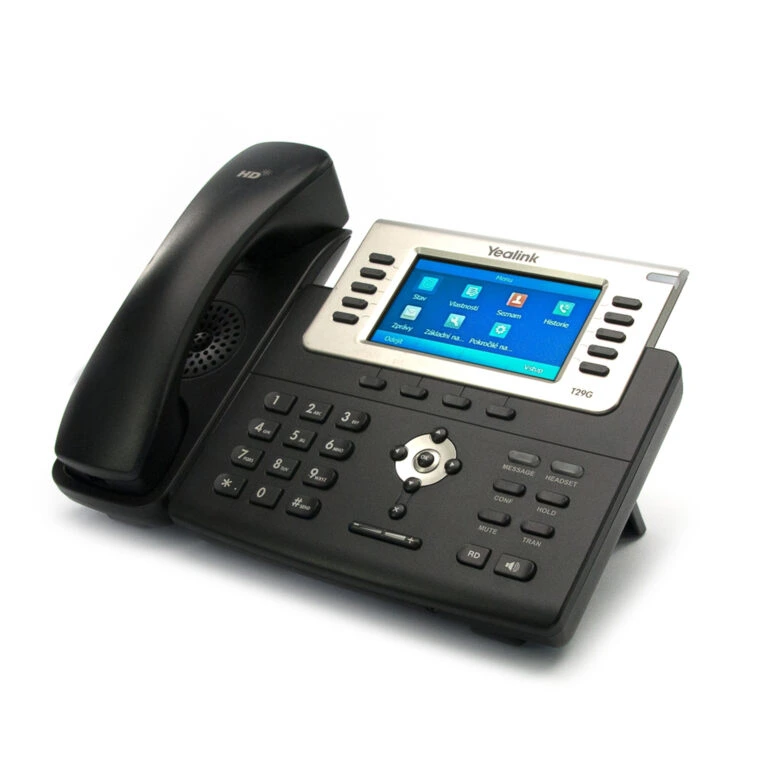

YEALINK IP PHONE T29G

SIP-T29G IP Phone is the most advanced model in the Yealink T2x IP terminal series. It has a high-resolution TFT color display, delivers a rich visual experience. Yealink Optima HD technology enables rich, clear, life-like voice communications. Supports Gigabit Ethernet, a variety of device connections, including EHS headset and USB. With programmable keys, the IP Phone supports vast productivity enhancing features

Audio Features

> HD voice: HD handset, HD speaker

> Codecs: AMR-WB (optional), AMR-NB (optional),

G.722, G.711(A/µ), G.723, G.729AB, G.726, iLBC

> DTMF: In-band, Out-of-band(RFC 2833) and SIP

INFO

> Full-duplex hands-free speakerphone with AEC

> VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

> 16 VoIP accounts

> Call hold, mute, DND

> One-touch speed dial, hotline

> Call forward, call waiting, call transfer

> Group listening, SMS, emergency call

> Redial, call return, auto answer

> 3-way conferencing

> Direct IP call without SIP proxy

> Ring tone selection/import/delete

> Set date time manually or automatically

> Dial plan

> XML Browser

> Action URL/URI

> Integrated screenshots

> RTCP-XR, VQ-RTCPXR

> USB port (2.0 compliant) for:

Bluetooth earphone through BT40,

Contact synchronization through BT40,

Wi-Fi through WF40,

USB call recording through USB flash drive

> Enhanced DSS Key

Directory

> Loal phonebook up to 1000 entries

> Black list

> XML/LDAP remote phonebook

> Intelligent search method

> Phonebook search/import/export

> Call history: dialed/received/missed/forwarded

IP-PBX Features

> Busy Lamp Field (BLF)

> Bridged Line Apperance(BLA)

> Anonymous call, anonymous call rejection

> Hot-desking, voice mail

> Music on hold

> Message Waiting Indicator (MWI)

> Call park, call pickup

> Intercom, paging

> Call completion, call recording

> Flexible seating> Executive and Assistant

> Centralized call recording

> Visual Voice Mail

Display and Indicator

> 4.3? 480 x 272-pixel color display with backlight

> 16 bit depth color

> LED for call and message waiting indication

> Dual-color (red or green) illuminated LEDs for

line status information

> Wallpaper

> Multilingual user interface with icons and soft keys

> Caller ID with name, number and photo

> Power saving

> Screensaver

Feature keys

> 10 line keys with LED

> 10 line keys can be programmed up to 27 various

features (3-page view)

> 8 features keys: message, headset, conference, hold,

mute, transfer, redial, hands-free speakerphone

> 4 context-sensitive “soft” keys

> 6 navigation keys

> Volume control keys

> Illuminated headset key

Interface

> Dual-port Gigabit Ethernet

> 1 x USB port (2.0 compliant)

> 1 x RJ9 (4P4C) handset port

> 1 x RJ9 (4P4C) headset port

> 1 x RJ12 (6P6C) EXT port: Supports up to 6 Expansion

Modules for an attendant console application

> Power over Ethernet (IEEE 802.3af), class 0

Other Physical Features

> Color: Black

> Stand with 2 adjustable angles

> Wall mountable

> External Yealink AC adapter (optional):

AC 100~240V input and DC 5V/2A output

> Power consumption (PSU): 1.6-3.9W

> Power consumption (PoE): 2.1-5.7W

> Dimension (W*D*H*T):

244mm*213mm*185mm*54mm

> Operating humidity: 10~95%

> Operating temperature: -10~50°C (+14~122°F)

Management

> Configuration: browser/phone/auto-provision>

> Auto provision via FTP/TFTP/HTTP/HTTPSfor mass deploy

> Auto-provision with PnP

> Auto-provision with PnP

> BroadSoft device management

> Zero-sp-touch, TR-069

> Phone lock for personal privacy protection

> Reset to factory, reboot

> Package tracing export, system log

Network and Security

> SIP v1 (RFC2543), v2 (RFC3261)

> Call server redundancy supported

> NAT traversal: STUN mode

> Proxy mode and peer-to-peer SIP link mode

> IP assignment: static/DHCP

> HTTP/HTTPS web server

> Time and date synchronization using SNTP

> UDP/TCP/DNS-SRV(RFC 3263)

> QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP

> SRTP for voice

> Transport Layer Security (TLS)

> HTTPS certificate manager

> AES encryption for configuration file

> Digest authentication

> OpenVPN, IEEE802.1X

> IPv6

> LLDP/CDP/DHCP VLAN

> ICE

Package Features

> Package content:

– Yealink SIP-T29G IP phone

– Handset with handset cord

– Ethernet Cable (1.5m CAT5E UTP Cable)

– Stand

– Quick Start Guide

– Power Adapter (Optional)

> Qty/CTN: 5 PCS

> N.W/CTN: 6.6 kg

> G.W/CTN: 7.4 kg

> Giftbox size: 295mm*224mm*115mm

> Carton Meas: 602mm*308mm*236mm
