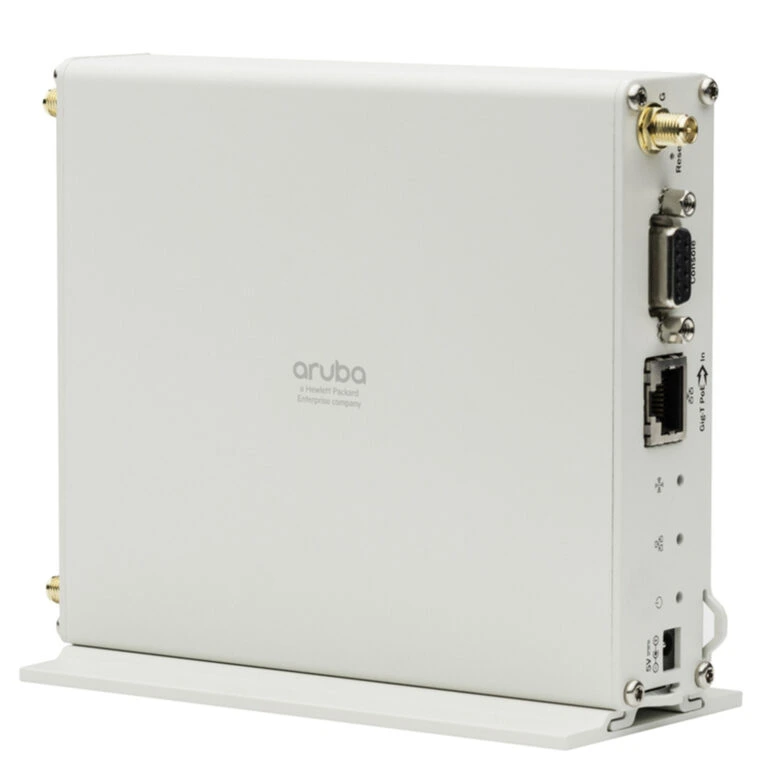

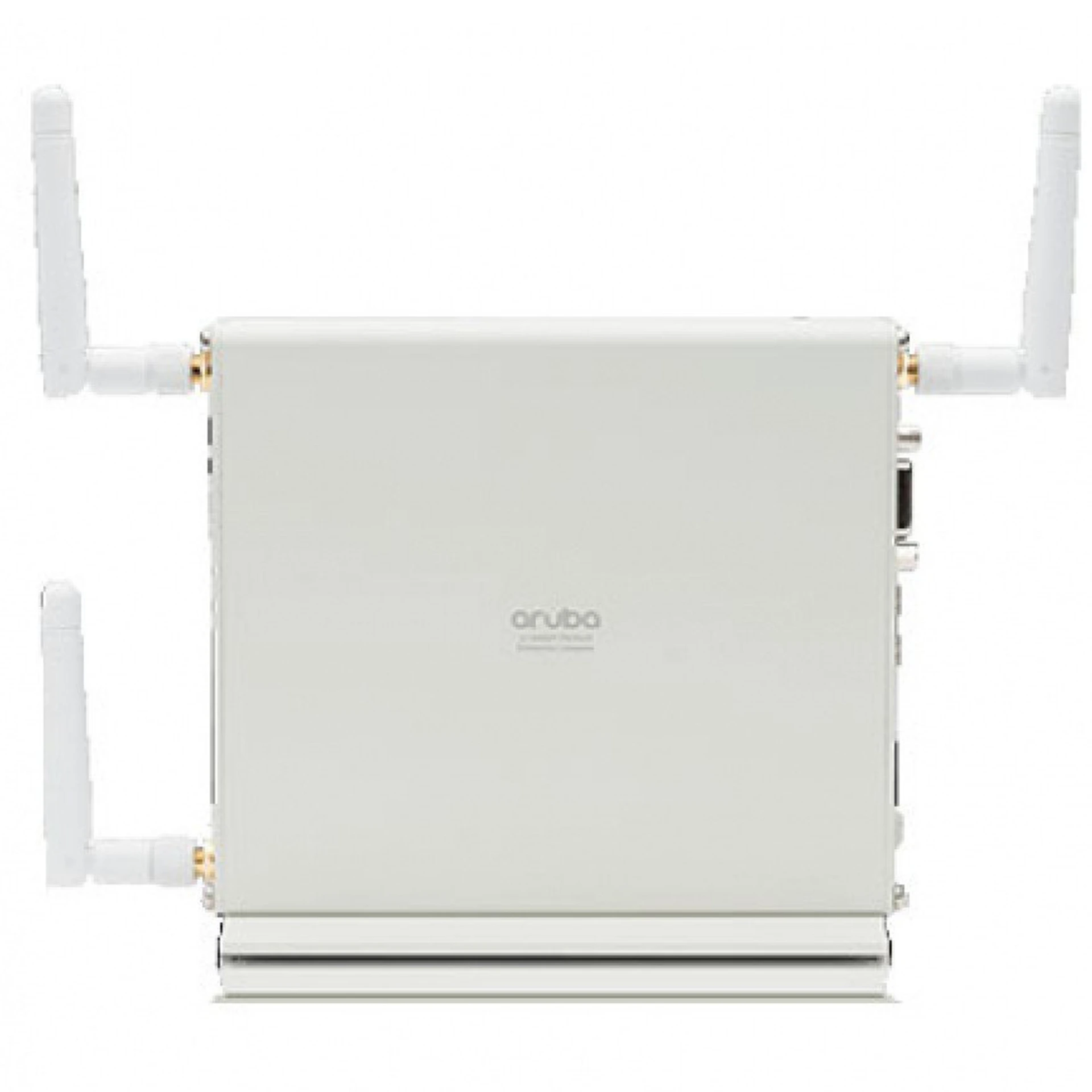

ARUBA 501 WIRELESS CLIENT BRIDGE

ARUBA 501 WIRELESS CLIENT BRIDGE

Aruba 501 Wireless Client Bridge enables you to easily integrate devices with no native wireless support into a wireless LAN (WLAN). It provides enterprise-class layered security to protect the network from intrusions. The device provides the benefit of wireless benefit to number of devices such as electronic cash registers, scales, servers, medical equipments and other devices. It connects up to 15 Ethernet enabled devices via a multi port switch. Secures the data integrity of wireless traffic.

Features

Anywhere wireless coverage

High interoperability

Simplifies deployment

Selects the channel automatically

Support for WLAN networks

Web based configuration

Specifications:

Overview

This client bridge can connect up to 15 Ethernet client devices running a legacy networking protocol to the WLAN – extending wireless network access to a wide range of protocols.

An integrated serial to TCP/IP converter enables a RS-232 asynchronous terminal device to communicate with a compatible station on the network – providing the benefits of wireless mobility for devices like electronic cash registers, scales, servers, printers, medical equipment and other devices.

Hardware-accelerated encryption provides higher performance when using WPA2/AES security.

I/O PORTS AND SLOTS

1 RJ-45 autosensing 10/100/1000 port; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

1 RS-232C serial console port

CHARACTERISTICS

Radios (built-in):

802.11 a/b/g/n/ac

Radio operation modes:

Client bridge

Wi-Fi Alliance Certification:

a/b/g/n/ac Wi-Fi Certified

Antenna connector:

Three RP-SMA

Antenna:

2dBi dual-band omnidirectional

Number of external antennas: 3

Three spatial streams for up to 1.3 Gbps PHY rate

Three RP-SMA connectors for a range of antenna options

(NOTE: when using outdoor antennas, customer must supply RP-SMA to Type N adapter)

PHYSICAL CHARACTERISTICS

Dimensions:

5.5 (W) x 1.3 (D) x 5.0 (H) in (13.97 x 3.3 x 12.7 cm)

Weight:

2.01 lb (0.91 kg)

ENVIRONMENTAL

Operating temperature:

32°F to 122°F (0°C to 50°C)

Operating relative humidity:

5% to 95%, noncondensing

Nonoperating/Storage temperature:

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity:

5% to 95%, noncondensing

Shock and vibration:

EN 61373

Altitude:

10,000 feet (3,048 meters)
