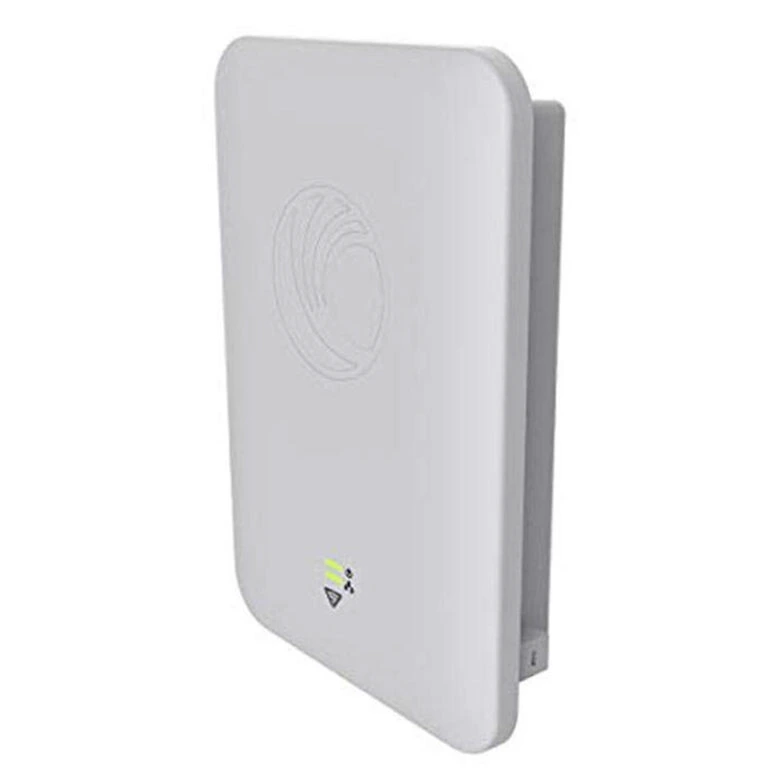

CAMBIUM cnPilot e500

Cambium CN Pilot E500 is an outdoor Wi-Fi access point that offers Omni coverage for enterprise campuses, public Wi-Fi, hospitality, educational institutions, industrial campuses, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN Access Points. It features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more essential features for easy Wi-Fi operations. It supports 256 max concurrent client associations and is secured with WPA-2 encryption. The access point is essential for today’s demanding high density outdoor Wi-Fi networks.

Features

Zero touch onboarding and configuration

Inventory tracking and monitoring

Offers more flexibility for both coverage and capacity

Increased performance

Affordable and no hidden charges

Integrated troubleshooting

Specifications:

ACCESS POINT

FREQUENCY BANDS

2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz

SSID SECURITY

16

MAX CONCURRENT CLIENTS

256

MAX RANGE

Client: 213 m (700 Ft); Range will vary based on RF conditions & client capability. Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)

WI-FI FEATURES

Controller modes

• Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller

Captive Portal

• cnMaestro Controller • Stand-alone AP based • Redirection to external RADIUS • Server DNS logging

Authentication

• RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or External RADIUS server)

Tools

• Packet capture • IP connectivity • Wi-Fi analyzer • Sniffer • Auto logging • • Open source ZapD compliant performance test tool

PHYSICAL

DIMENSIONS (CM)

30 x 20.4 x 6.5 cm (without bracket)

WEIGHT

Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)

MOUNTING OPTIONS

Pole mount bracket (included) or wall-mount (with included bracket or without)
