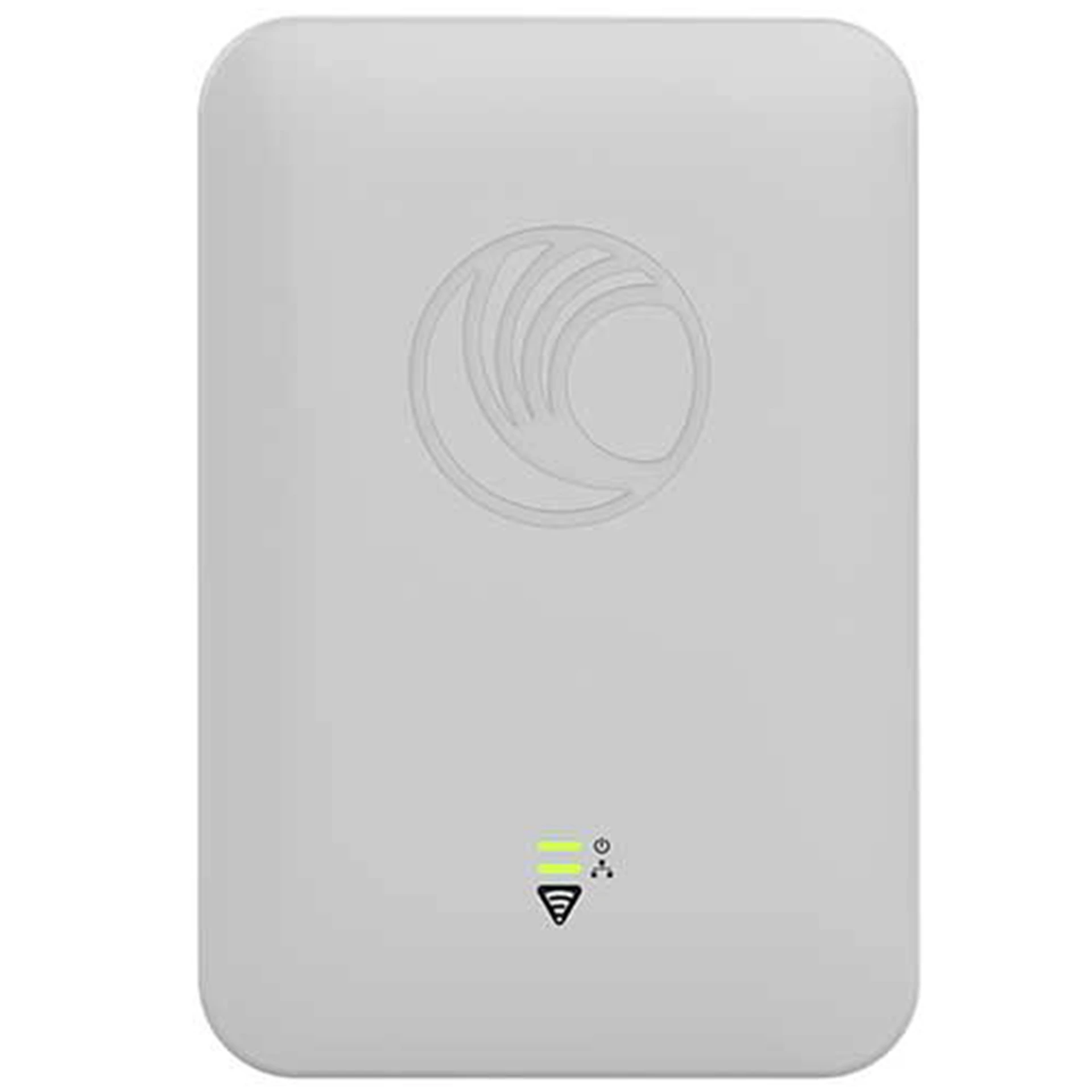

CAMBIUM cnPilot e502S

Cambium CN Pilot e502S Enterprise outdoor wireless access point is ideal for demanding high density applications such as in stadiums, event coverage, public Wi-Fi in high noise environments, warehouses, and just about any demanding outdoor environment requiring cost-effective, controller managed WLAN Access Points. It features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more essential features for easy Wi-Fi operations. It supports 256 max concurrent client associations and is secured with WPA-2 encryption. The access point is essential for today’s demanding high density outdoor Wi-Fi networks.

Features

Zero touch onboarding and configuration

Inventory tracking and monitoring

Supports max up to 256 users

Offers more flexibility for both coverage and capacity

Increased performance

Affordable and no hidden charges

Integrated troubleshooting

Specifications:

ACCESS POINT

FREQUENCY BANDS

2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz

SSID SECURITY

WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open

MAX CONCURRENT CLIENTS

256

MAX RANGE

Client: 213 m (700 Ft); Actual range will vary based on local RF conditions & client capability. Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)

MAX DATA RATES

s ETHERNET PORTS D

WIFI FEATURES

Controller modes

• Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller

Secure WLAN

• WPA-TKIP, WPA2 AES, 802.1x • 802.11w (Protected Management Frames)

PHYSICAL

DIMENSIONS (CM)

30 x 20.4 x 6.5 cm (without bracket)

WEIGHT

Without bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)

OPERATING TEMPERATURE

-30?C ~ +60?C

POWER CONSUMED

Typical: 8W Max: 12.95W (no auxiliary device connected)
