MIKROTIK RBSXTSQ-5ND SQ LITE5

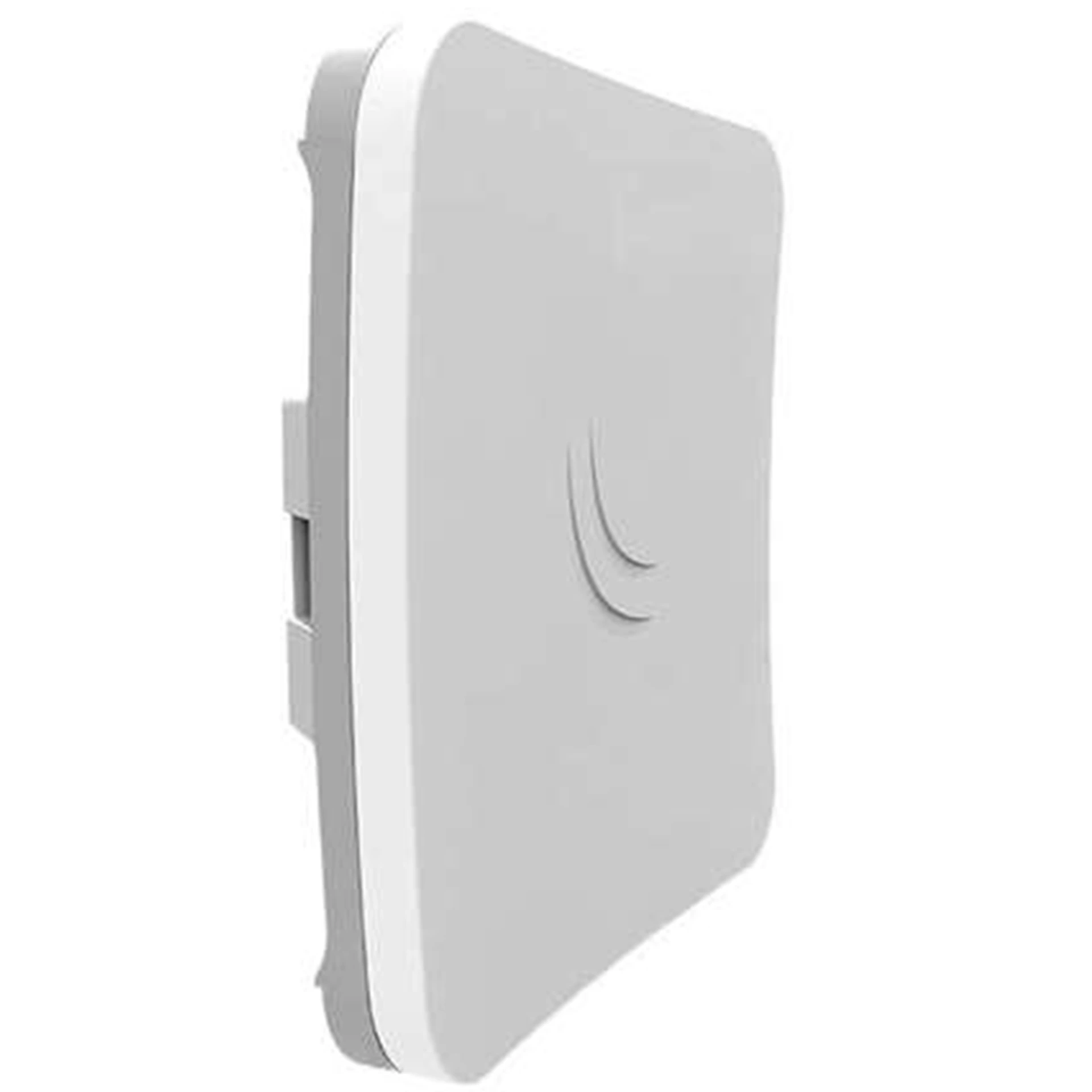

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner (see photos for comparison).

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

– SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

Specifications:

Product code RBSXTsq5nD

Architecture MIPSBE

CPU AR9344

CPU core count 1

CPU nominal frequency 600 MHz

Dimensions 129x129x34mm

License level 3

Operating System RouterOS

Size of RAM 64 MB

Storage size 16 MB

Storage type FLASH

Tested ambient temperature -40°C to 70°C

Suggested price $46.00

Powering

Details

PoE in Passive PoE

PoE in input Voltage 10-30 V

Number of DC inputs 1 (PoE-IN)

Max power consumption 6 W

Wireless

Details

Wireless 5 GHz Max data rate 300 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n

Antenna gain dBi for 5 GHz 16

Wireless 5 GHz chip model AR9344

Wireless 5 GHz generation Wi-Fi 4

Ethernet

Details

10/100 Ethernet ports 1

Certification & Approvals

Details

Certification CE/RED, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 25 -96

54MBit/s 20 -80

MCS0 25 -96

MCS7 19 -75
